10-inch Drone Rack
SKU:D-RACK-10

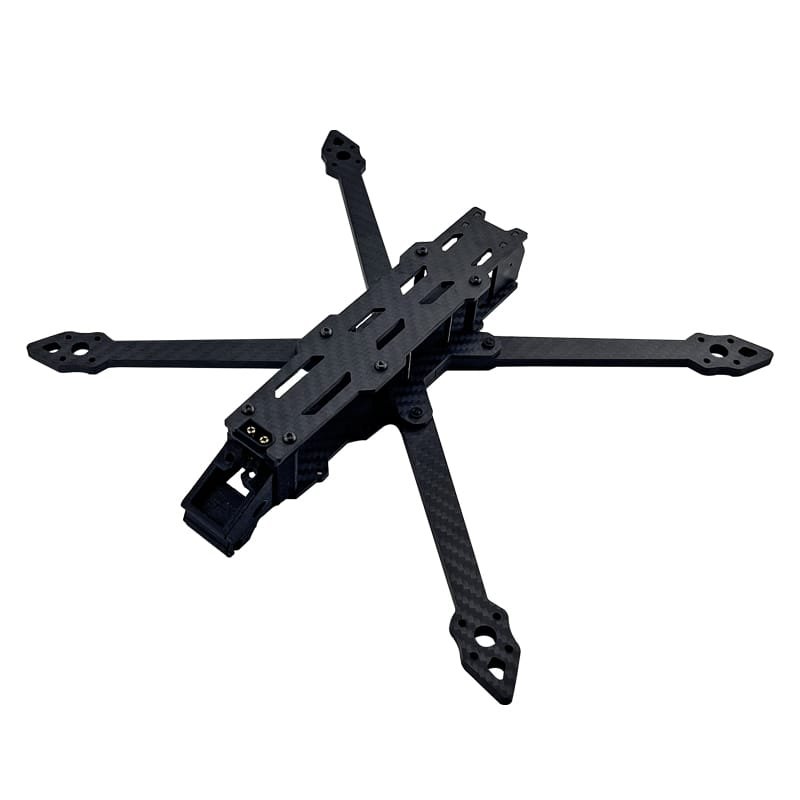

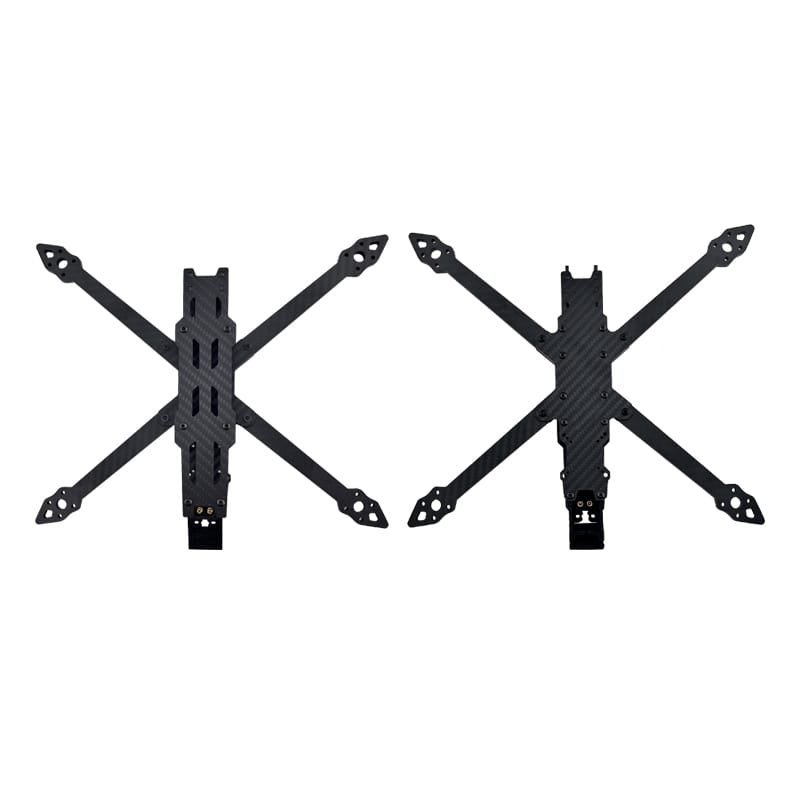

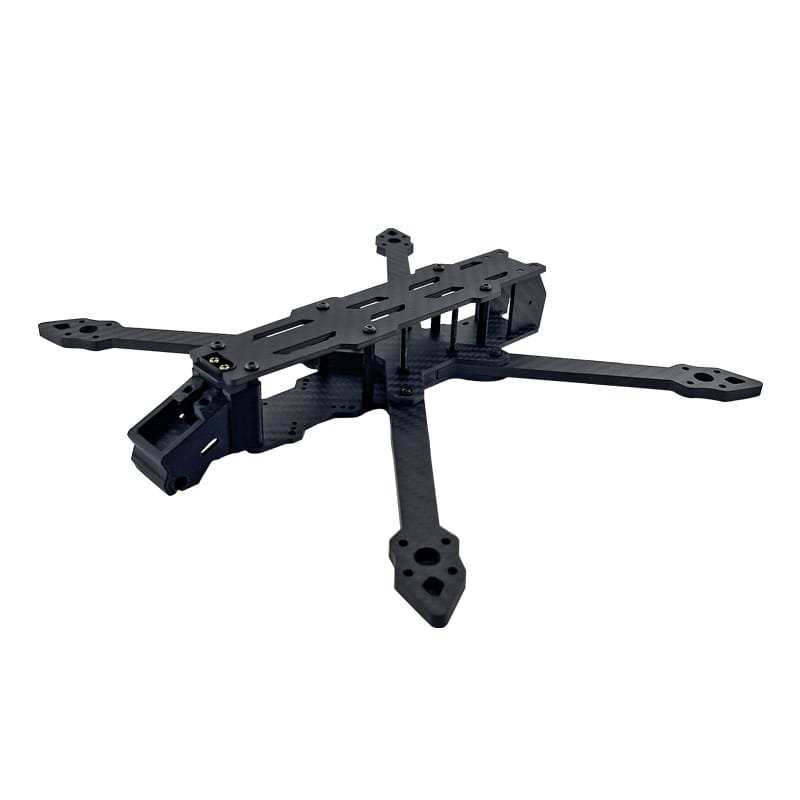

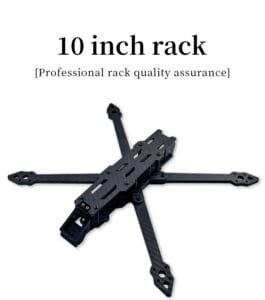

10-inch drone rack features an X-shape design with quick detachable arms and a stable and flexible flight attitude, made of high-quality aluminum alloy and 3K full carbon fiber material for durability, supports up to 10-inch paddles, recommended 31-32 series motors, suitable for 4S to 6S batteries, with a compact size of 320mm and a lightweight design of 195g.
Share on:

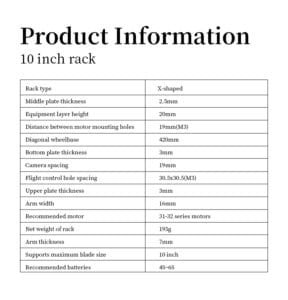

Product Parameter Information
| Rack Type | X-shaped |
| Middle Plate Thickness | 2.5mm |
| Equipment Layer Height | 20mm |
| Distance Between Motor Mounting Holes | 19mm (M3) |

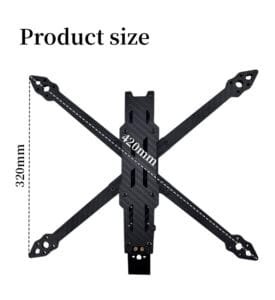

| Diagonal Wheelbase | 420mm |
| Bottom Plate Thickness | 3mm |
| Camera Spacing | 19mm |
| Flight Control Hole Spacing | 30.5x30.5 (M3) |
| Upper Plate Thickness | 3mm |
| Arm Width | 16mm |
| Recommended Motor | 31-32 series motors |
| Net Weight of Rack | 195g |
| Arm Thickness | 7mm |
| Supports Maximum Blade Size | 10 inch |
| Recommended Batteries | 4S~6S |
