D-C35EW 35mm Manual Focus Uncooled Infrared Detection Bt656 Output CVBS SD Card Network Thermal Camera
SKU:D-C35EW
The D-C35EW Thermal Camera Module is a professional-grade thermal imaging solution featuring a vanadium oxide uncooled thermal detector. With a resolution of 640x512, sensitivity of ≤35 mK @F1.0, 300K, and support for 10x optical zoom, this module offers high-performance image quality, rich functionality, and robust connectivity. It is suitable for various industrial, security, and surveillance applications.
Share on:
Overview
The D-C35EW Thermal Camera Module is a professional-grade thermal imaging solution featuring a vanadium oxide uncooled thermal detector. With a resolution of 640x512, sensitivity of ≤35 mK @F1.0, 300K, and support for 10x optical zoom, this module offers high-performance image quality, rich functionality, and robust connectivity. It is suitable for various industrial, security, and surveillance applications.Product Features
- High Sensitivity and Resolution: Features a vanadium oxide uncooled thermal detector for exceptional image quality. Maximum resolution: 640x512, with real-time image output.
- Thermal Zoom and Lens: 15~150mm lens with 10x optical zoom, enabling precise long-range detection.
- Wide Connectivity: Includes RS232 and RS485 serial communication, supporting diverse integration needs. Rich interface support for network access and remote control functions.
- Alarm and Storage Features: Supports 1 audio input/output and 1 alarm input/output, enabling alarm linkage. Expandable storage: Micro SD/SDHC/SDXC card, up to 256GB.
- Environmental Adaptability: Waterproof/weatherproof design ensures durability in challenging environments. Operational range: ≥30 meters.
Detailed Technical Parameters
| Category | Specifications |
|---|---|
| Model NO. | D-C35EW |
| Sensor | Vox Uncooled Thermal Detector |
| Effective Pixel | 640x512 |
| Sensor Size | 12μm |
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K |
| Thermal Lens | 15~150mm |
| Thermal Zoom | 10x |
| Certification | CE |
| Effective Distance | ≥30m |
| Remote Control | With Remote Control |
| Storage | Micro SD/SDHC/SDXC (up to 256GB) |
| Features | Waterproof, Weatherproof, High Definition, Mini Size, Auto BLC |
| Transport Package | Carton |
| Origin | Hangzhou, China |

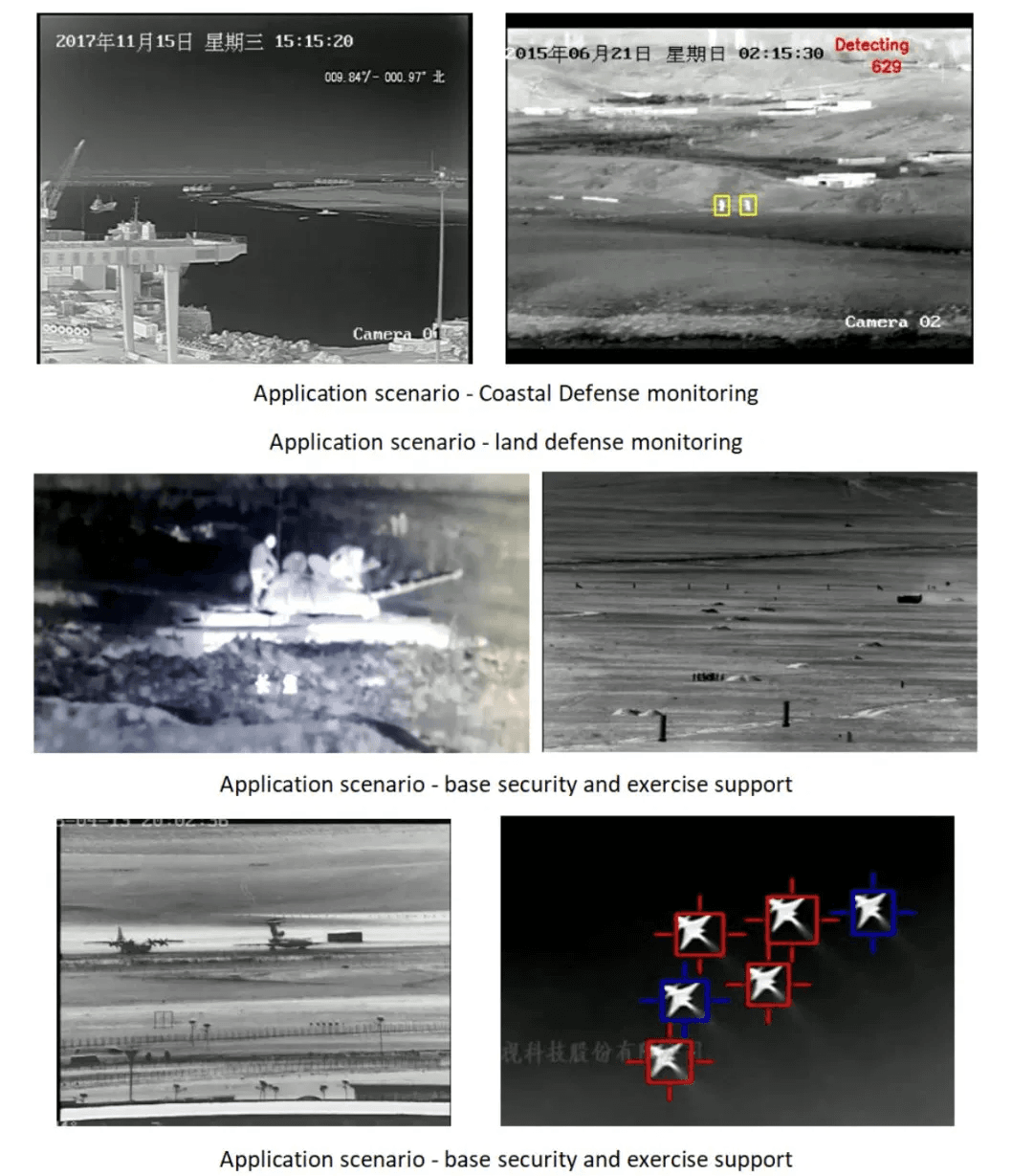

Application Scenarios
- Industrial Monitoring: Monitor equipment temperatures or detect irregularities in real-time.
- Security and Perimeter Surveillance: Detect intrusions or anomalies in restricted areas with precise thermal imaging.
- Wildlife and Agricultural Monitoring: Track wildlife or monitor crop health using advanced thermal technology.
- Firefighting and Emergency Response: Locate heat sources in emergency scenarios for improved rescue operations.
- Smart Cities: Integrated into smart city networks for urban safety and real-time monitoring.
