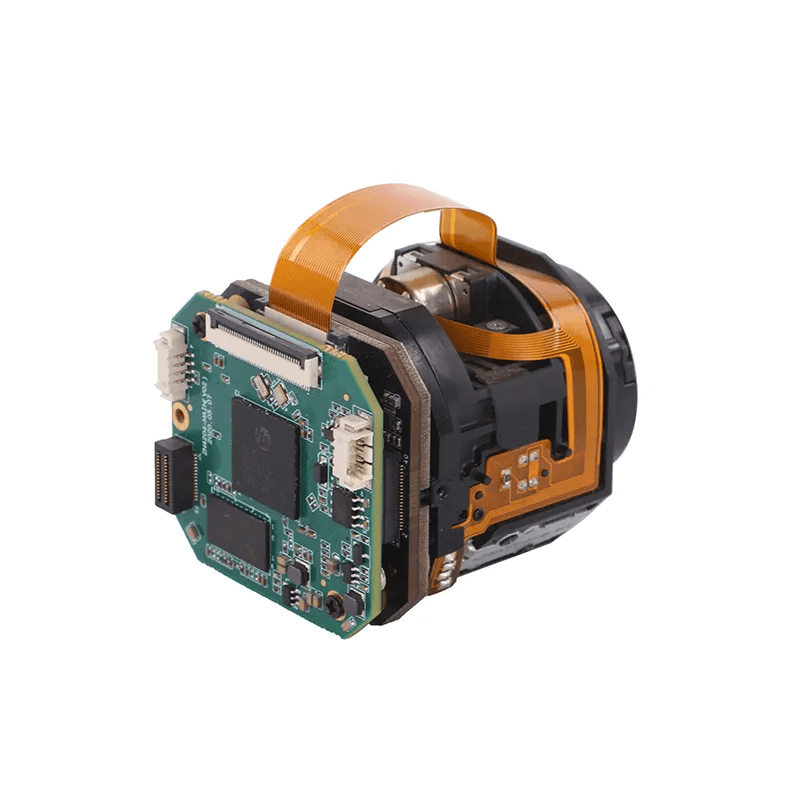

D-C4110UV 4MP 10X Optical Zoom Lens Mini Uav Network Zoom Camera Module

SKU:D-C4110UV
The D-C4110UV 4MP 10X Optical Zoom Lens Mini UAV Network Zoom Camera Module offers advanced optical zoom capabilities and high-resolution imaging, specifically designed for UAVs, industrial, and security applications. With a resolution of 4MP (2560x1440), support for 10x optical zoom, and multiple intelligent features, this module provides exceptional performance for a wide range of scenarios.

Quantity:

Share on:

The D-C8110UV 8MP 10X Optical Zoom 4K IP Drone Camera Module is a lightweight, high-performance camera specifically designed for UAVs and drone applications. With a maximum resolution of 8MP (3840×2160) and support for 10x optical zoom, it delivers unparalleled image quality, intelligent event algorithms, and robust features for surveillance, industrial, and aerial applications.

Overview

The D-C4110UV 4MP 10X Optical Zoom Lens Mini UAV Network Zoom Camera Module offers advanced optical zoom capabilities and high-resolution imaging, specifically designed for UAVs, industrial, and security applications. With a resolution of 4MP (2560x1440), support for 10x optical zoom, and multiple intelligent features, this module provides exceptional performance for a wide range of scenarios.

Product Features

  • High-Resolution Imaging: Maximum resolution: 2560x1440 @30fps with 4MP live image output. Starlight low illumination: 0.001Lux/F1.6 (Color), 0.0005Lux/F1.6 (B/W), 0 Lux with IR.
  • Optical Zoom and Wide Field of View: 10x optical zoom (4.8mm–48mm focal length) and 16x digital zoom. Wide horizontal field of view: 62–7.6°.
  • Intelligent Features: Integrated 1T intelligent calculation for deep algorithm learning. Motion detection, support for 255 presets and 8 patrols. Backlight compensation, electronic shutter, and 3-stream technology.
  • Advanced Video Encoding: Supports H.265 / H.264 / MJPEG video compression with high encoding efficiency. Adjustable resolution and frame rate for multi-profile streams.
  • Rugged and Compact Design: Lightweight design: 160g / 100g (with/without camera stand). Dimensions: 62.5x49x53.1mm.
  • Storage and Network Protocols: Support for 256GB Micro SD/SDHC/SDXC storage. ONVIF compatibility and a wide range of network protocols (TCP/IP, HTTP, RTSP, etc.).

Detailed Technical Parameters

Category Specifications
Image Sensor 1/2.8" Progressive Scan CMOS
Minimum Illumination Color: 0.001 Lux @F1.6; B/W: 0.0005 Lux @F1.6
Shutter 1/25s to 1/100,000s
Digital Zoom 16x
Focal Length 4.8mm–48mm (10x Optical Zoom)
Aperture Range F1.7–F3.1
Compression Standard H.265 / H.264 / MJPEG
Video Compression Bit Rate 32 Kbps–16 Mbps
Main Stream 2560x1440 @30fps, 1920x1080, 1280x960, 1280x720
3D Noise Reduction Support
Backlight Compensation Support
Storage Micro SD/SDHC/SDXC (up to 256GB)
Interface Protocol ONVIF, RTSP, IPv6
Operating Temperature -30°C to 60°C
Power Consumption 2.5W MAX (4.5W MAX with infrared)

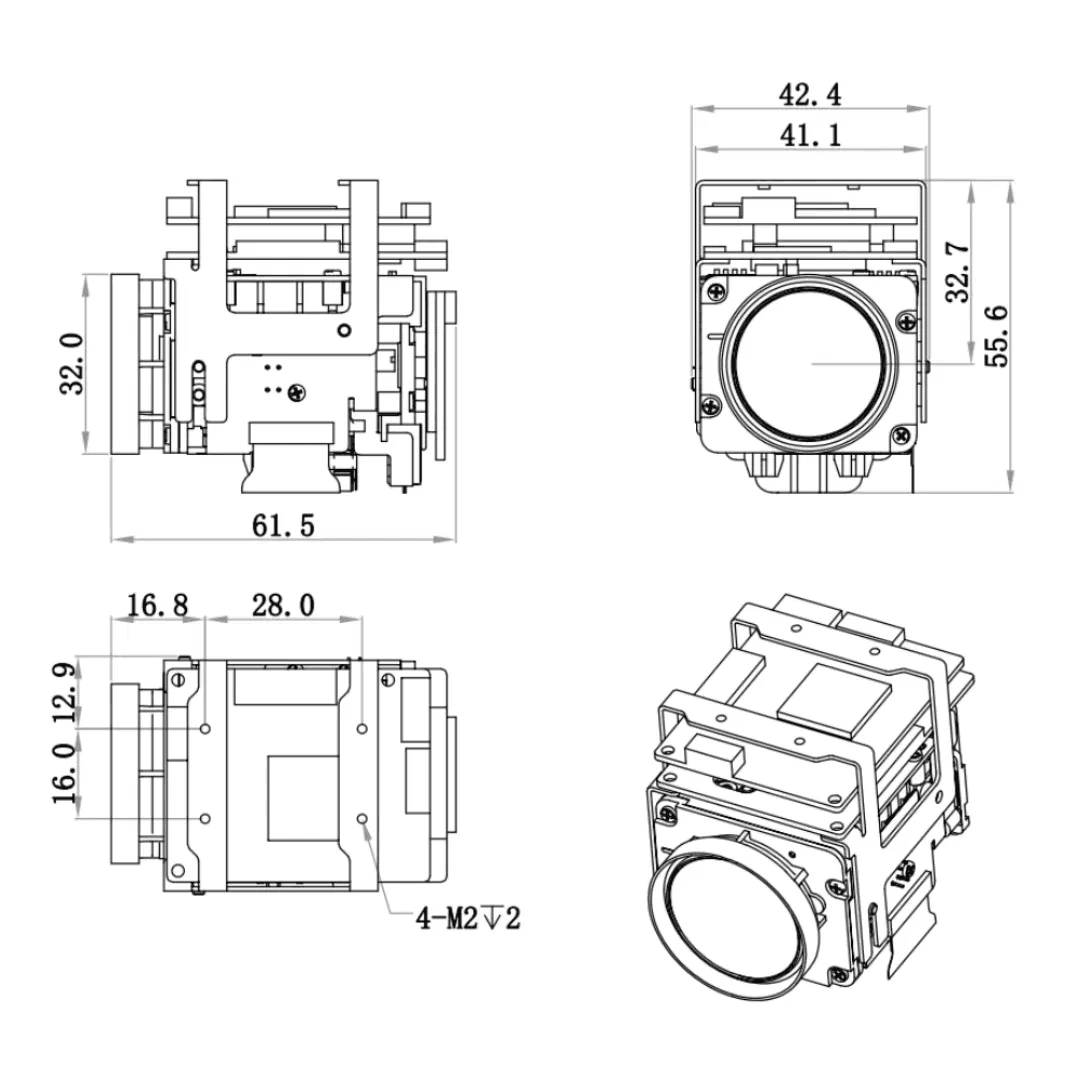

Dimensions 62.5x49x53.1mm
Weight 160g (with stand) / 100g (without stand)

Application Scenarios

  • UAV and Drone Applications: Lightweight design optimized for drones in aerial photography and surveillance.
  • Industrial Monitoring: Ideal for inspecting industrial equipment or infrastructure with high-resolution imaging.
  • Perimeter Security: Advanced motion detection and low-light capabilities for sensitive surveillance zones.
  • Smart Cities: Supports integration into urban monitoring systems for real-time event tracking.
  • Custom Camera Solutions: Suitable for small dome or bullet cameras, providing flexible integration options.

Related Products

  • D-C4206UV OEM 6X Zoom Lens Mini Security CCTV IP Camera Module with Ai Function
    D-C4206UV OEM 6X Zoom Lens Mini Security CCTV IP Camera Module with Ai Function
    D-C4206UV

    D-C4206UV OEM 6X Zoom Lens Mini Security CCTV IP Camera Module with Ai Function

    Cameras

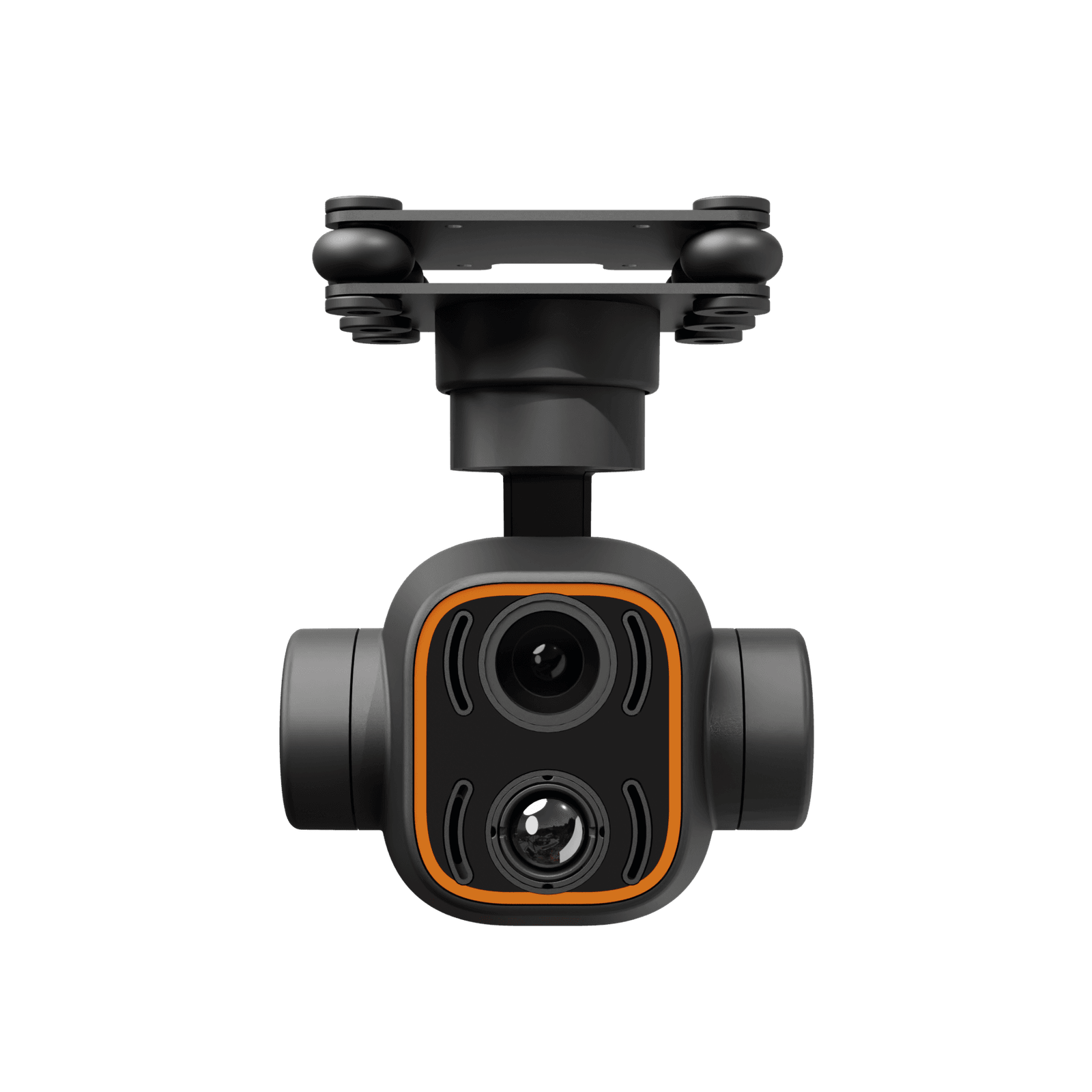

  • DA12 three-axis stable control dual light gimbal: intelligent dynamic tracking, integrated 2K visible light and thermal imaging
