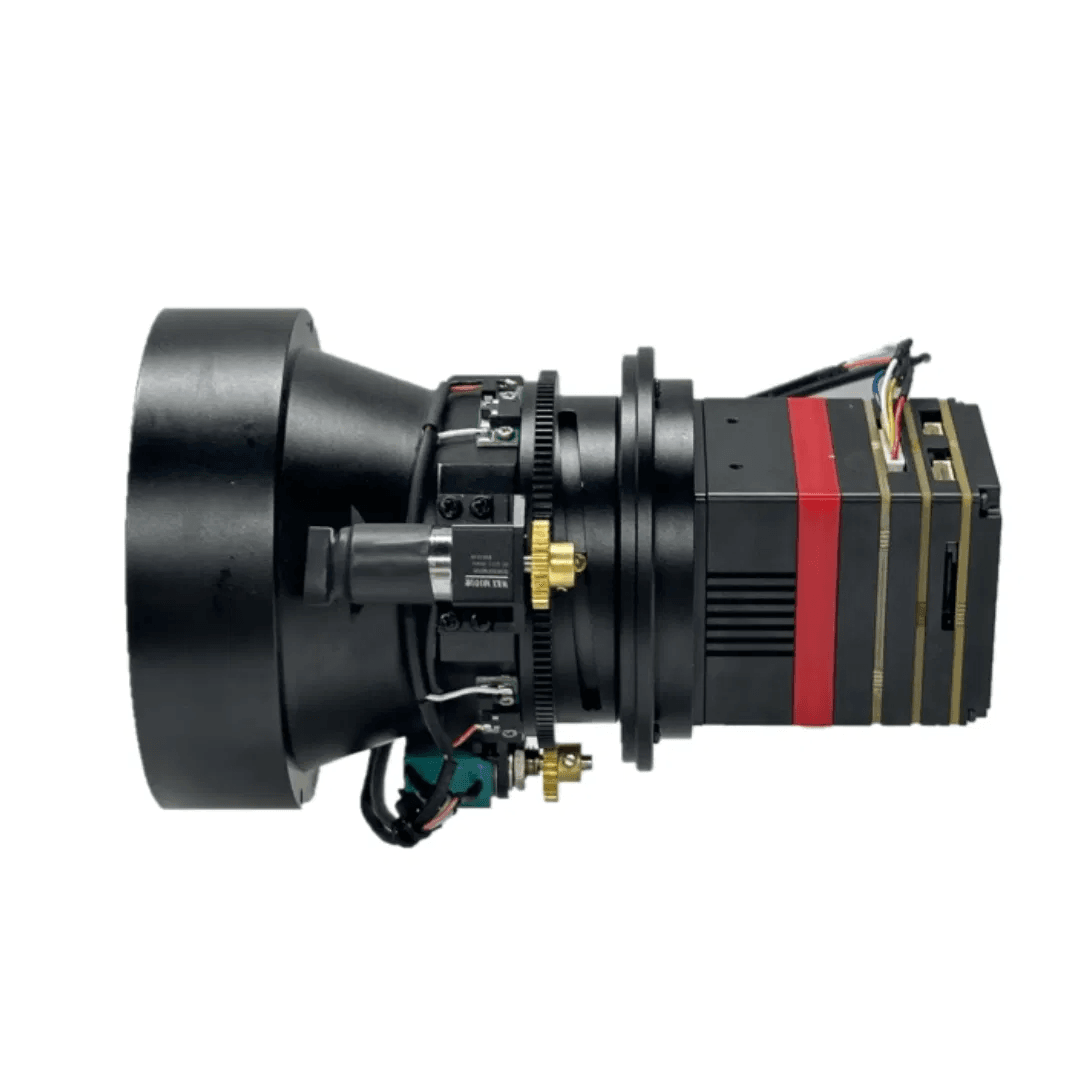

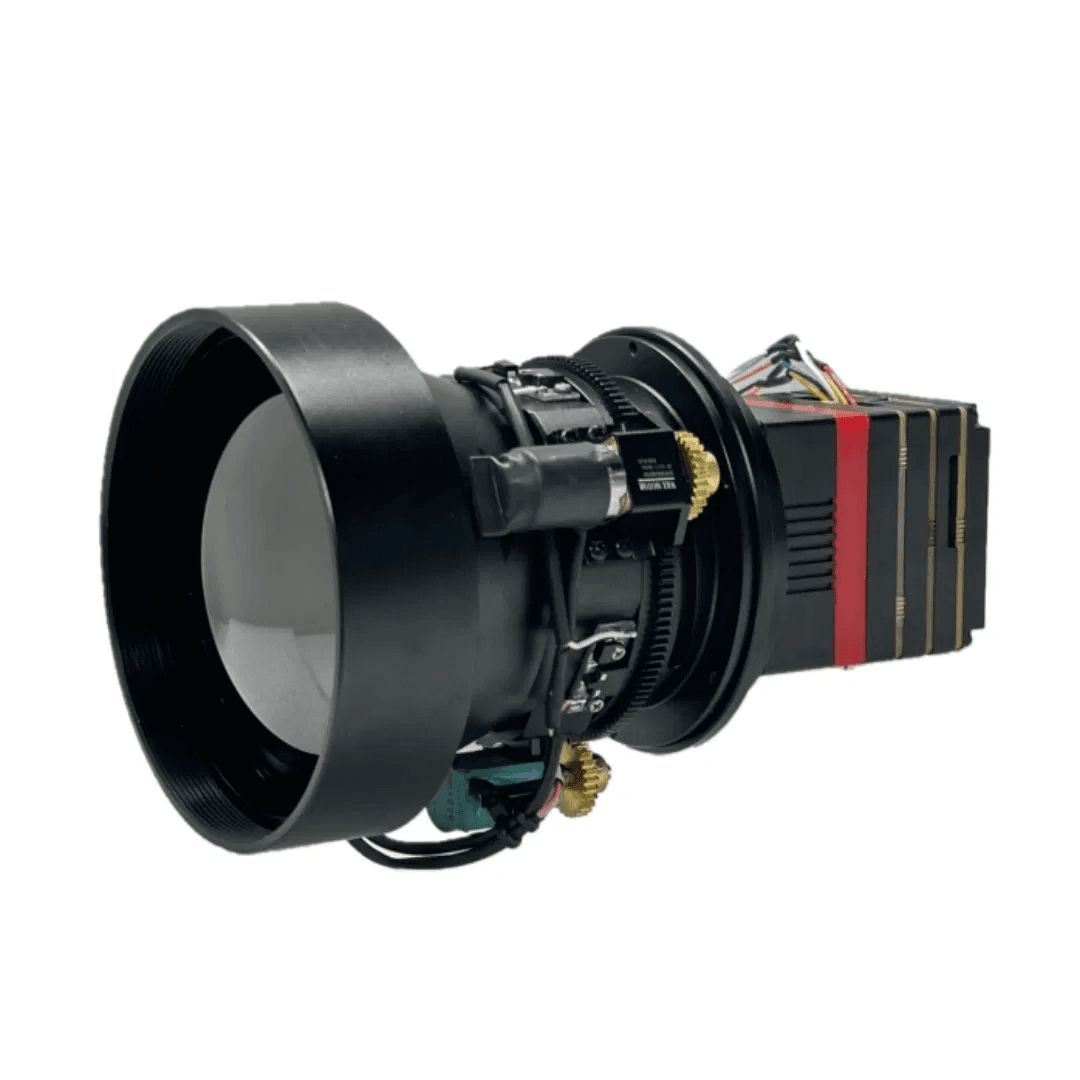

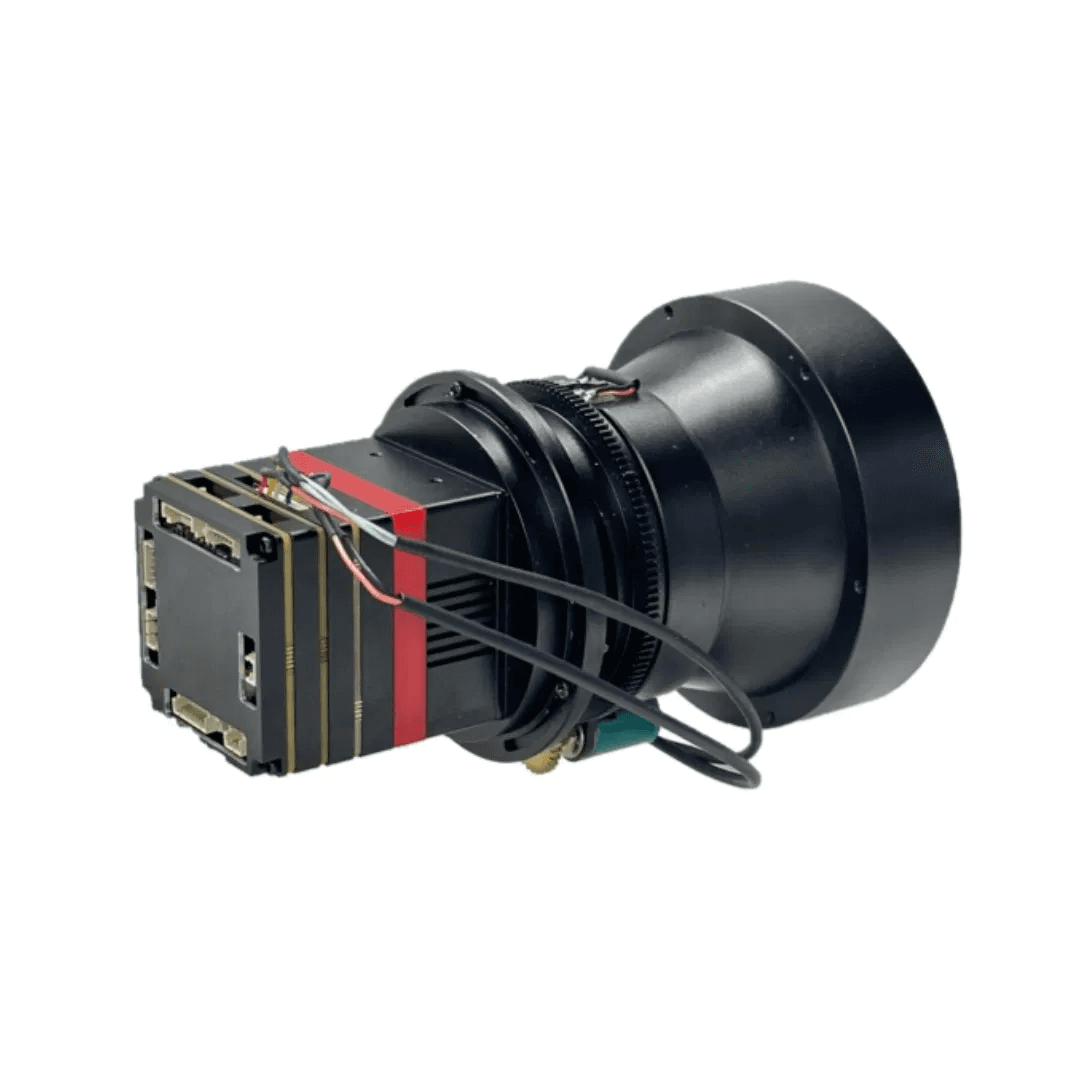

D-C75EW 75mm Lwir Uncooled 640*512 Motorized Zoom Af Thermal Imaging Camera Module
SKU:D-C75EW
The D-C75EW Thermal Camera Module is a cutting-edge thermal imaging device featuring a vanadium oxide uncooled infrared detector. With a resolution of 640x512 and sensitivity of ≤35 mK @F1.0, 300K, it offers superior image clarity for industrial, surveillance, and security applications. Equipped with a 75mm electronic focusing lens, rich interface options, and support for intelligent detection, it is designed to meet the demands of diverse environments.
Share on:
Overview
The D-C75EW Thermal Camera Module is a cutting-edge thermal imaging device featuring a vanadium oxide uncooled infrared detector. With a resolution of 640x512 and sensitivity of ≤35 mK @F1.0, 300K, it offers superior image clarity for industrial, surveillance, and security applications. Equipped with a 75mm electronic focusing lens, rich interface options, and support for intelligent detection, it is designed to meet the demands of diverse environments.Product Features
- High Image Quality and Sensitivity: Vanadium oxide uncooled thermal detector with a resolution of 640x512. Sensitivity: ≤35 mK @F1.0, 300K for enhanced thermal detection.
- Lens and Image Control: 75mm electronic focusing lens with FOV of 5.9°×4.7° and focusing range from 5m to ∞. Adjustable brightness, contrast, gamma settings, and 10 pseudo-color modes.
- Advanced Image Processing: Features include image filtering, noise reduction, bad pixel correction, and digital zoom (1x, 2x, 4x).
- Intelligent Detection: Supports functions like electronic fence, cross-border detection, and area intrusion monitoring.
- Alarm and Storage Functions: 1 alarm input/output and support for Micro SD/SDHC/SDXC storage up to 256GB. Alarm linkage capability.
- Rich Connectivity Options: Includes RS232 and RS485 serial ports, 100M network port, and USB for versatile integration.
- Durability and Environmental Adaptability: IP67-rated lens sealing and an operational temperature range from -30°C to 60°C.
Detailed Technical Parameters
| Category | Specifications |
|---|---|
| Detector Type | Vox Uncooled Thermal Detector |
| Resolution | 640x512 |
| Pixel Size | 12μm |
| Spectral Range | 8-14μm |
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K |
| Lens | 75mm Electronic Focusing Lens |
| FOV | 5.9°×4.7° |
| Focusing Range | 5M to ∞ |
| Sealing | IP67 (front of lens) |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 |
| Compression Standards | H.265 / H.264 |
| Digital Zoom | 1x, 2x, 4x (Step 0.1) |
| Pseudo Color Modes | 10 modes |
| Interfaces | RS232, RS485, 1 alarm input/output, 1 audio input/output, 1 USB port |
| Storage | Micro SD/SDHC/SDXC (up to 256GB) |
| Operating Temperature | -30°C to 60°C |
| Power Supply | DC12V±10% |
| Power Consumption | 5W MAX |
| Dimensions | Ф86 x 139.4mm |
| Weight | 504g |

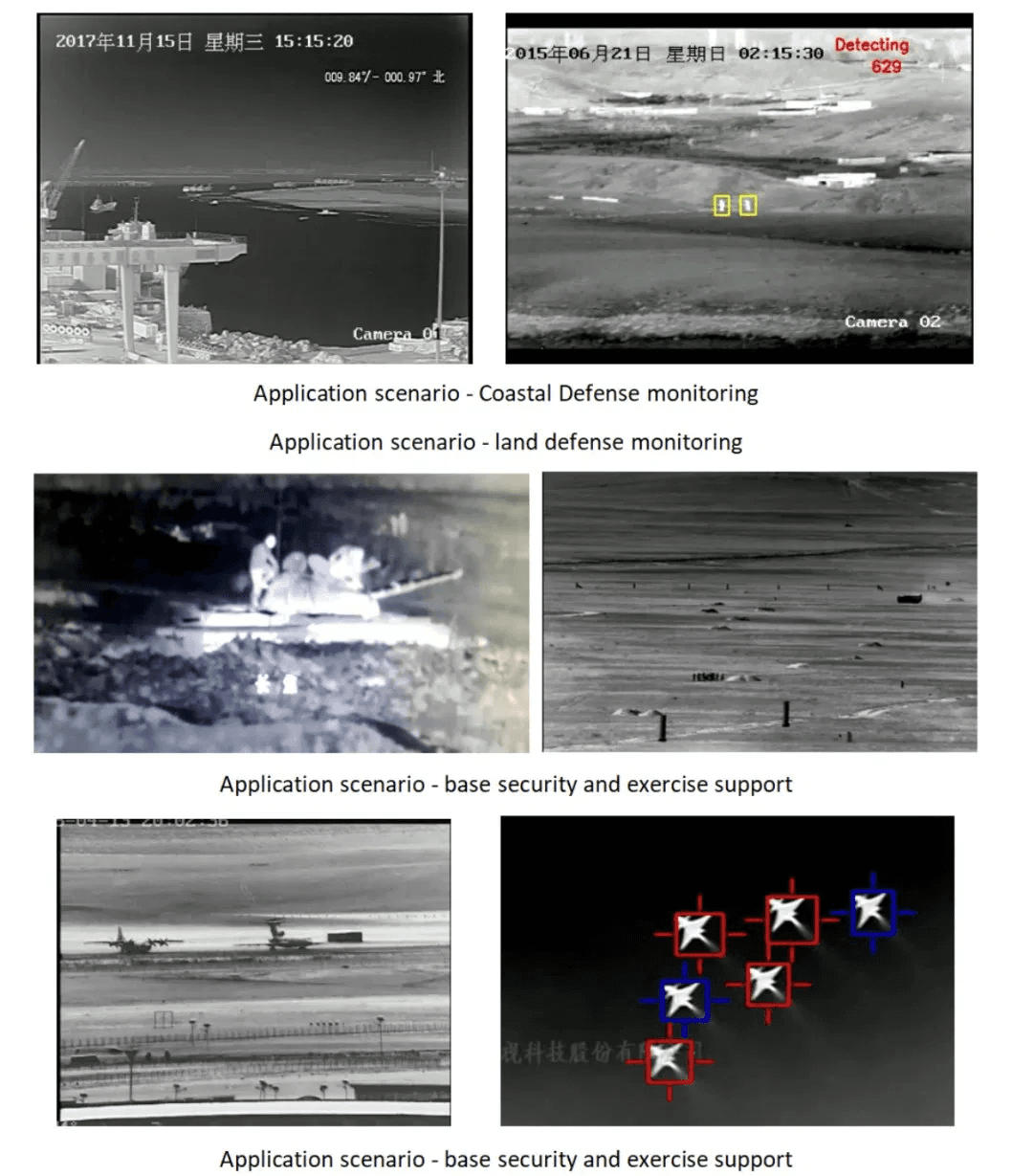

Application Scenarios
- Industrial Monitoring: Detects temperature anomalies in manufacturing and infrastructure environments.
- Border Surveillance: Monitors critical perimeters with high thermal resolution for low-visibility conditions.
- Firefighting and Emergency Response: Helps locate heat sources in fire incidents and rescue operations.
- Agriculture and Wildlife Monitoring: Tracks livestock or wildlife and monitors crop health using thermal imaging.
- Security and Defense: Supports intelligent intrusion detection and surveillance for critical facilities.
