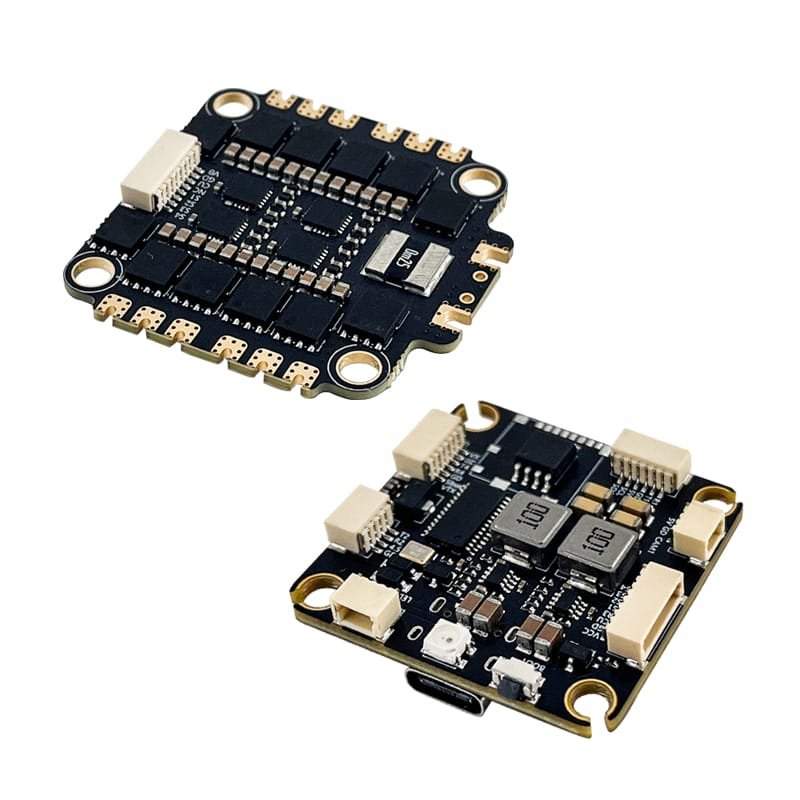

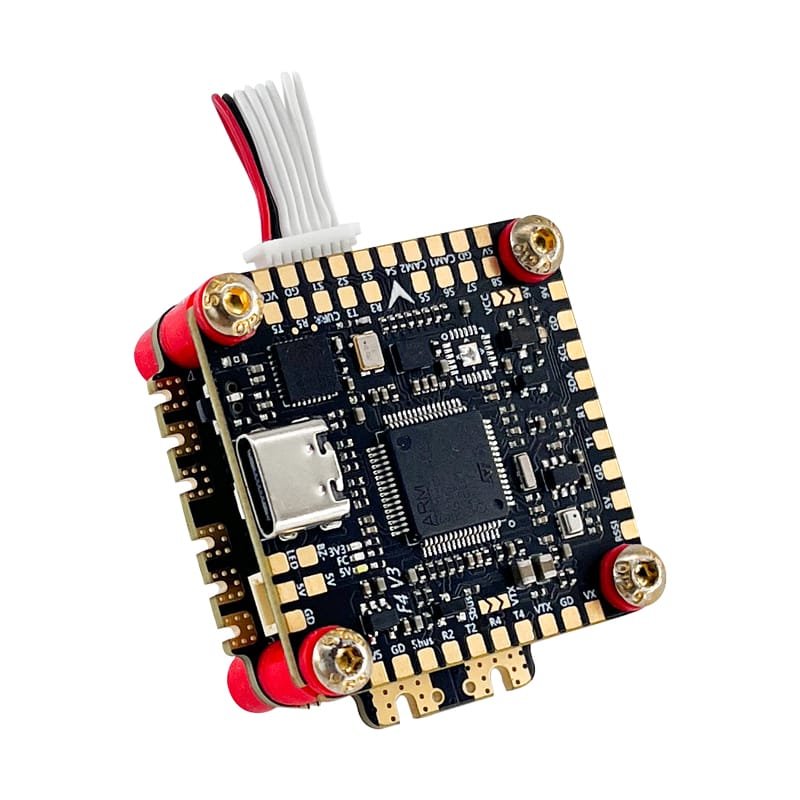

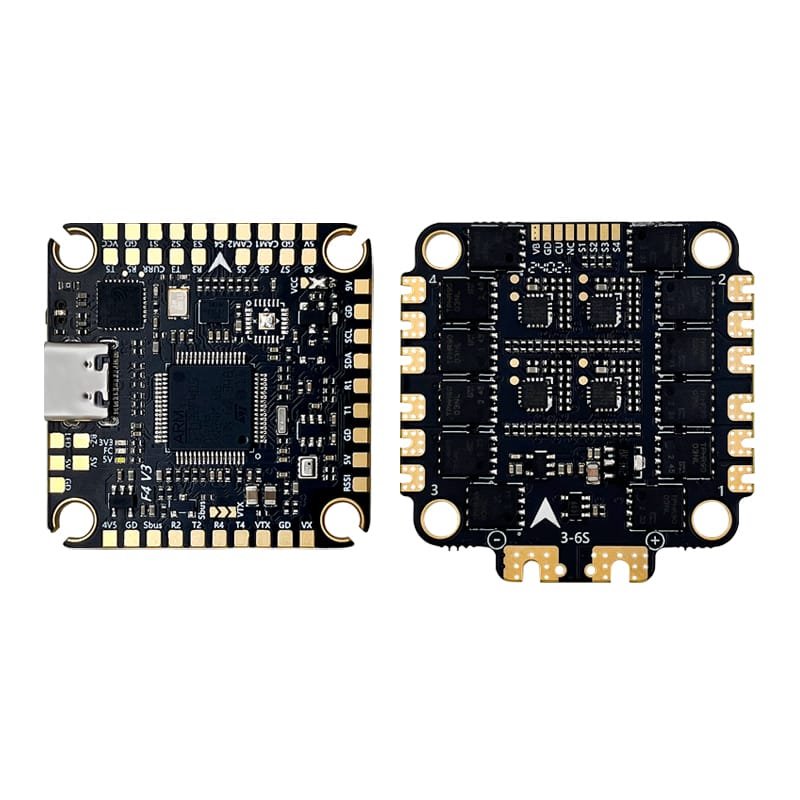

D-F460S V3 Stacd F405 V3 ICM42688 FC BLS 60A 4 in 1ESC 30x30mm 3-6S for FPV Freestyle Drone
SKU:D-F460S-V3
The F460S V3 Stack integrates the high-performance F405 V3 Flight Controller and 3060S ESC Fly Tower, supporting 8-way motor control for X8, Y6 and fixed-wing models, with wireless parameter adjustments and firmware upgrades, in a compact and powerful package.
Share on:

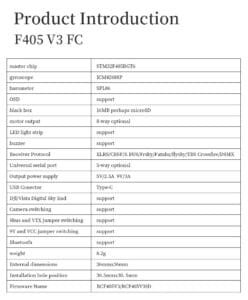

F405 V3 FC Device Specifications
| Master Chip | STM32F405RGT6 |
|---|---|
| Gyroscope | ICM42688P |
| Barometer | SPL06 |
| OSD | Support |
| Black Box | 16MB perhaps microSD |
| Motor Output | 8-way optional |
| LED Light Strip | Support |
| Buzzer | Support |
| Receiver Protocol | ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX |
| Universal Serial Port | 5-way optional |
| Output Power Supply | 5V/2.5A 9V/3A |
| USB Connector | Type-C |
| DJI/Vista Digital Sky End | Support |
| Camera Switching | Support |
| Sbus and VTX jumper switching | Support |
| 9V and VCC jumper switching | Support |
| Bluetooth | Support |
| Weight | 8.2g |

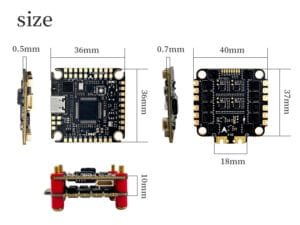

| External Dimensions | 36mmx36mm |
| Installation Hole Position | 30.5mmx30.5mm |
| Firmware Name | RCF405V3/RCF405V3SD |

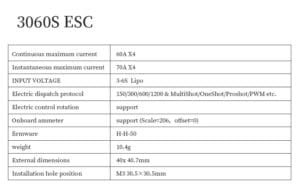

3060S ESC Device Specifications
| Continuous Maximum Current | 60A X4 |
|---|---|
| Instantaneous Maximum Current | 70A X4 |
| Input Voltage | 3-6S Lipo |
| Electric Dispatch Protocol | 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. |
| Electric Control Rotation | Support |
| Onboard Ammeter | Support (Scale=206, offset=0) |
| Firmware | H-H-50 |
| Weight | 10.4g |
| External Dimensions | 40x40.7mm |
| Installation Hole Position | M3 30.5x30.5mm |
