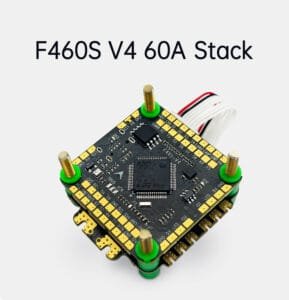

D-F460S V4 Stacd F405 V3 ICM42688 FC BLS 60A 4 in 1ESC 30x30mm 3-6S for FPV Freestyle Drone
SKU:D-F460S-V4

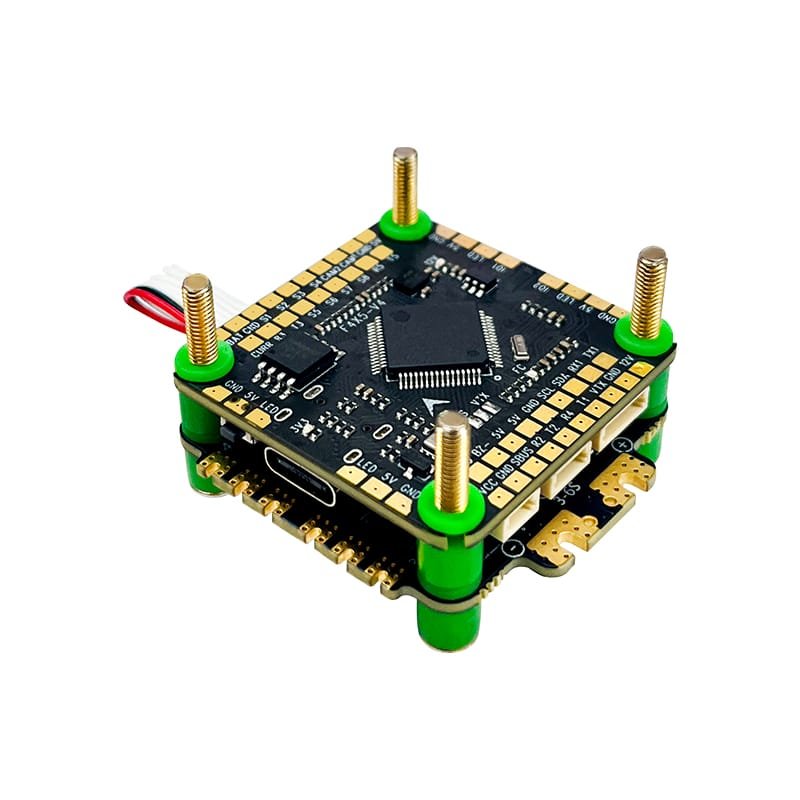

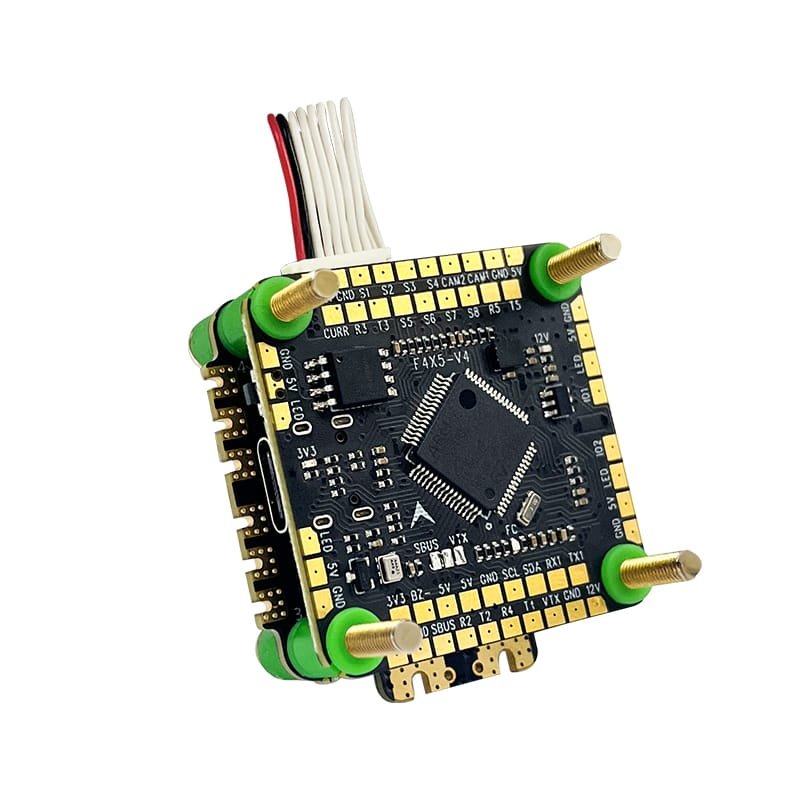

F460S V4 is an advanced UAV flight control ESC all-in-one fly tower with STM32F405RGT6 processor and ICM42688P gyroscope, supporting 8-channel motor control, compatible with 3-6S Li-Po batteries, featuring 5 UART serial ports, BEC outputs, LED strips, buzzer, and a variety of receiver protocols support. It also offers wireless parameter tuning and firmware upgrades, and features a compact 36mm x 36mm size and 30.5mm x 30.5mm mounting hole spacing, making it ideal for professional drone operators.
Share on:
D-F460S V4 Stacd F405 V3 ICM42688 FC BLS 60A 4 in 1ESC 30x30mm 3-6S for FPV Freestyle Drone Device Specifications

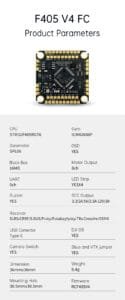

| F405 V4 FC | |
|---|---|
| CPU | STM32F405RGT6 |
| Gyro | ICM42688P |
| Barometer | SPL06 |
| OSD | YES |
| Black Box | 16MB |
| Motor Output | 8ch |
| UART | 5ch |
| LED Strip | YES (4 in total) |
| Buzzer | YES |
| BEC Output | 3.3V/2A, 5V/2.5A, 12V/3A |
| Receiver Protocol | ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX |
| USB Connector | Type-C |
| DJI 03 | YES |
| Camera Switch | YES |
| Sbus and VTX jumper | YES |
| Dimension | 36mm x 36mm |
| Weight | 9.4g |
| Mounting Hole | 30.5mm x 30.5mm |
| Firmware | RCF405V4 |

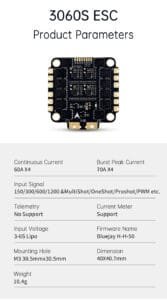

| 3060S ESC | |
| Continuous Current | 60A X4 |
| Burst Peak Current | 70A X4 |
| Input Signal | 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. |
| Telemetry | Not Supported |
| Current Meter | Support |
| Input Voltage | 3-6S Lipo |
| Firmware Name | Bluejay H-H-50 |
| Mounting Hole | M3 30.5mm x 30.5mm |
| Dimension | 40mm x 40.7mm |
| Weight | 10.4g |
