D-F760 Stack F722 V1 FC 3060BL32 60A 4 in 1ESC 30x30mm 3-6S for FPV Freestyle Drone
SKU:D-F760

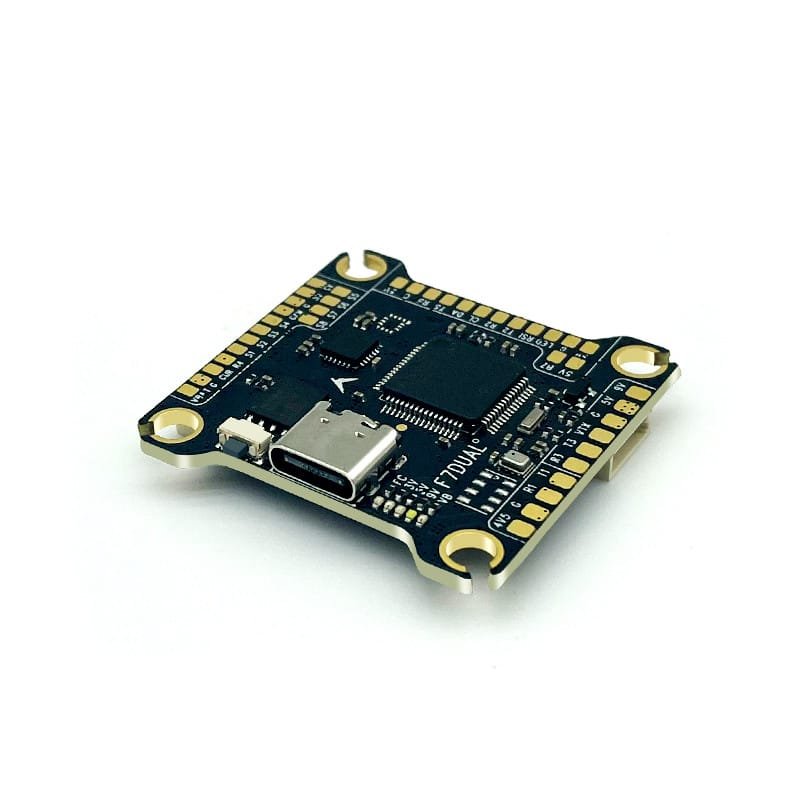

This D-F760 stacked UAV flight control system is equipped with STM32F22RET6 processor, BMI270/MPU6000 gyroscope, BMP280/DPS310/MS5611 barometer (optional), supports OSD and 5V/2.5A, 9V/3A BEC output. The flight controller has 16MB of black box storage, 5 UART channels, Type-C USB interface, weighs 8.8g, and measures 37mm x 37mm.The ESC supports 3-6S Li-Polymer batteries, MCU is G071, continuous current 60A x4, peak current 70A x4, supports current sensor and telemetry, weighs 13.8g, and measures 41mm x 44.5mm.
Share on:

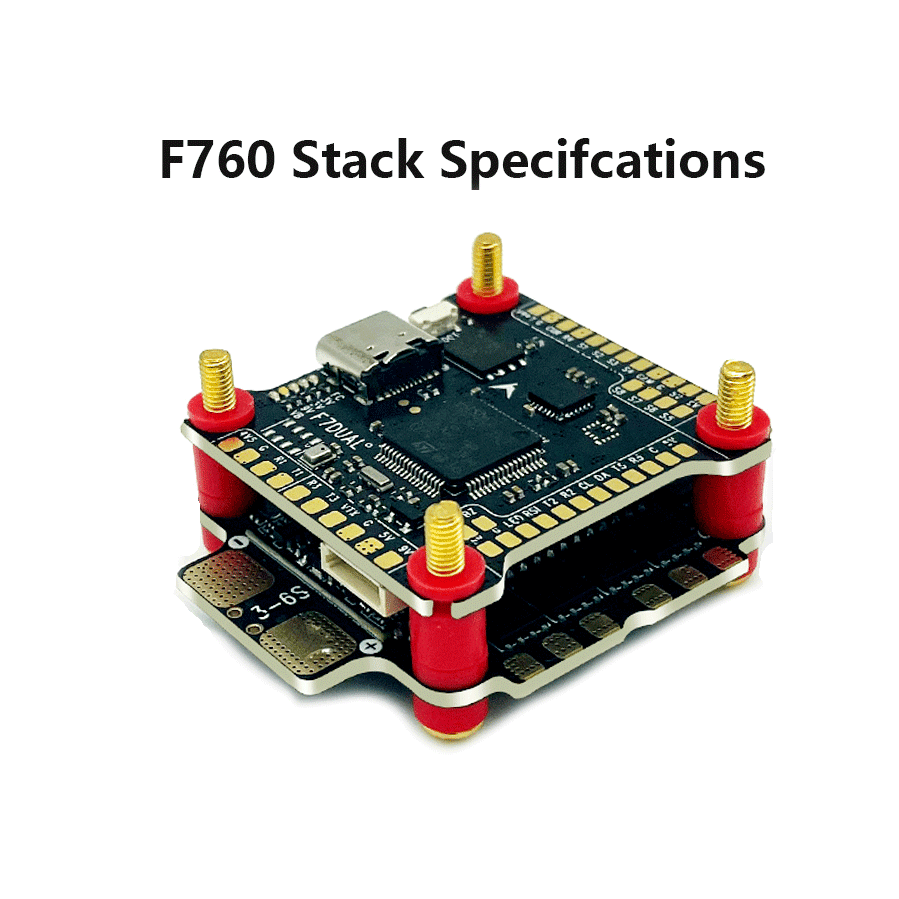

F760 Stack Specifications
| FC Specifications | |
|---|---|
| CPU | STM32F22RET6 |
| Gyro | BMI270/MPU6000 |
| Baro | BMP280/DPS310, MS5611 (optional) |
| OSD | Support |
| BEC Output | 5V/2.5A, 9V/3A |
| BlackBox | 16MB |
| UART | 5ch |
| BEC | 5V/2.5A, 9V/3A |
| USB Connector | Type-C |
| Weight | 8.8g |
| Mounting Hole | 30.5X30.5mm, M3 |
| Size | 37X37mm |
| FC Firmware | AOCODAF7DUAL |

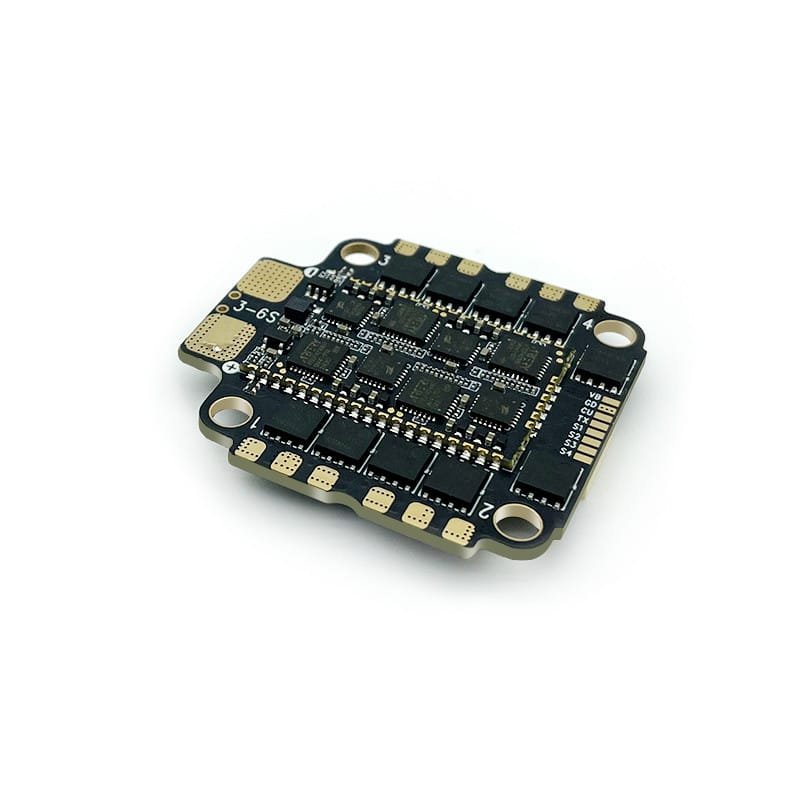

| ESC Specifications | |
|---|---|
| Power Supply | 3-6S Lipo |
| MCU | G071 |
| Continuous Current | 60A X4 |
| Burst Current | 70A X4 |
| Current sensor | Support |
| Current scale | 125 (recommended) |
| ESC Telemetry | Support |
| Weight | 13.8g |
| Mounting Hole | 30.5X30.5mm, M3 |
| Size | 41X44.5mm |
| Default protocol | 150/300/600/1200 & Multishot/OneShot/Proshot/PWM etc. |
| ESC Firmware | BL32_4IN1_60A |
| Packing Includes | |
|---|---|
| RCF7DUAL | X1 |
| RC 3060 ESC | X1 |
| SH1.0 8P Cable | X2 |
| 470uF 35v Rubycapacitor | X1 |
| XT60AWG12 Power Cable 10CM | X1 |
| M3 Shock Absorber | X4 |
| M3 Nylon Nut | X4 |
