DAH30 Remote control: stable transmission in three frequency bands, 50KM ultra long transmission, 10.1-inch large screen, capable of smooth control even in harsh environments

Name: DAH30 Remote control: stable transmission in three frequency bands, 50KM ultra long transmission, 10.1-inch large screen, capable of smooth control even in harsh environments
Brand: UAVAUTO
SKU: D-H30
Price: 500 USD
Availability: InStock

SKU:D-H30

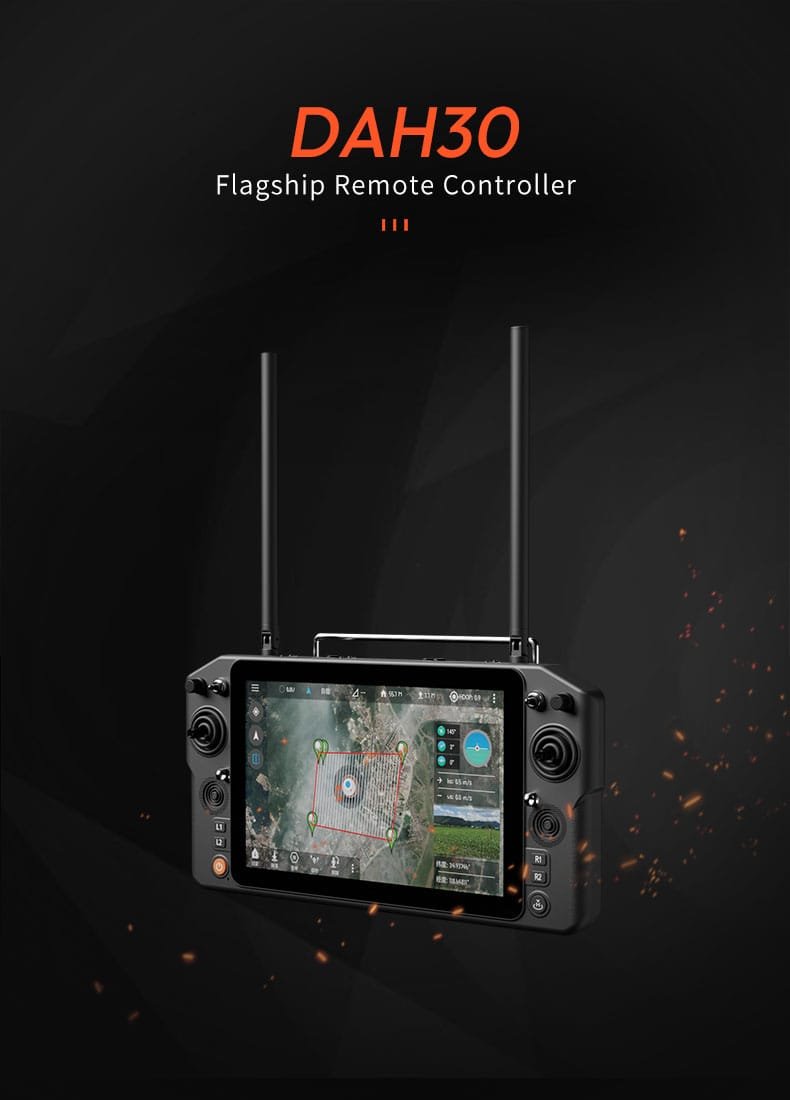

The DAH30 High-Performance Flagship Remote Controller is a cutting-edge device designed for long-range and high-precision drone operations. Featuring stable tri-band communication (1.4GHz/2.4GHz/800MHz), a 10.1-inch sunlight-readable touch screen, and a robust Qualcomm 660 processor, it delivers exceptional performance for industrial, surveillance, and emergency applications. With a 50KM maximum transmission range and rich interface options, the D-H30 is built to handle the most demanding scenarios with ease.

Share on:

Overview

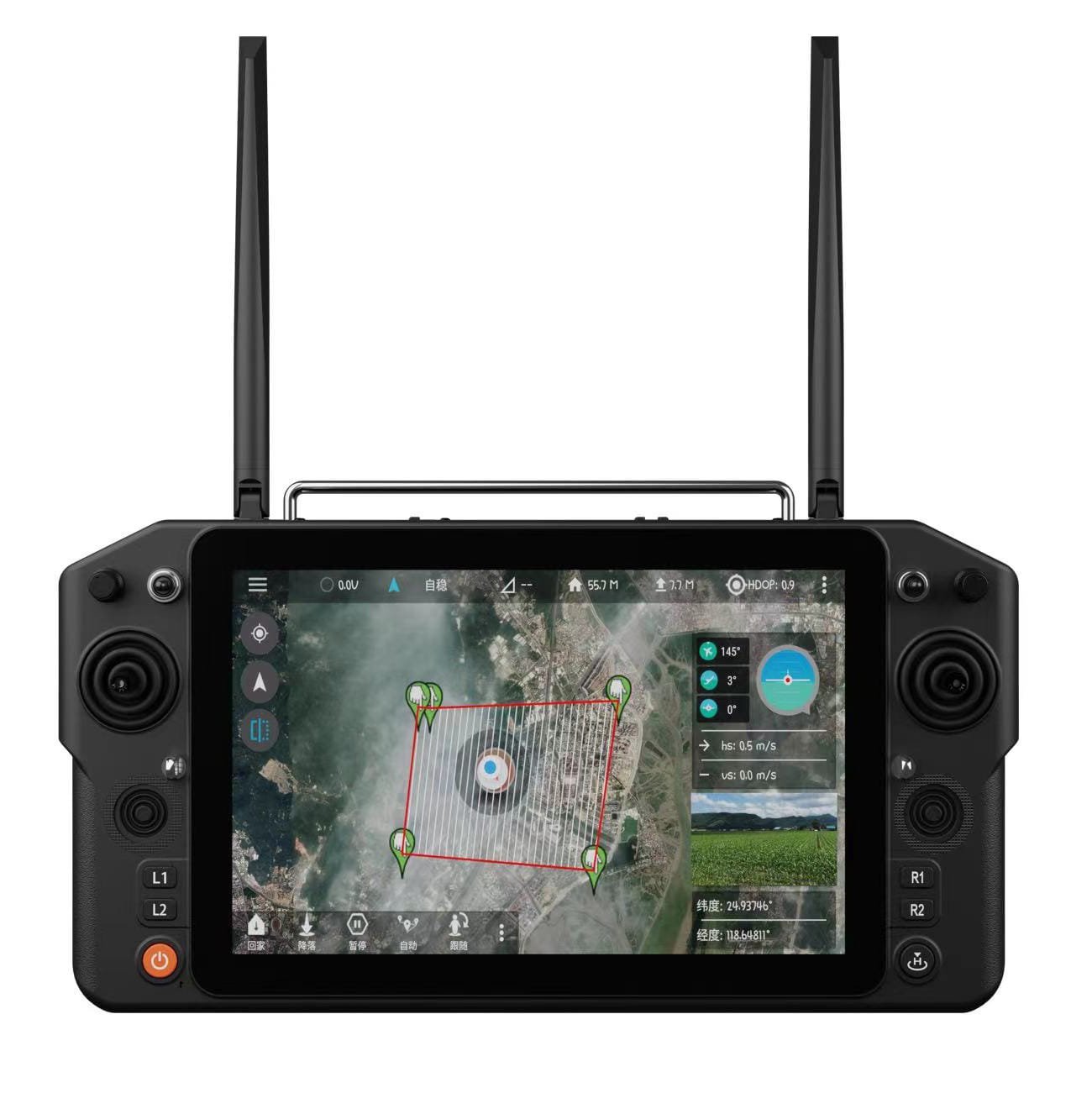

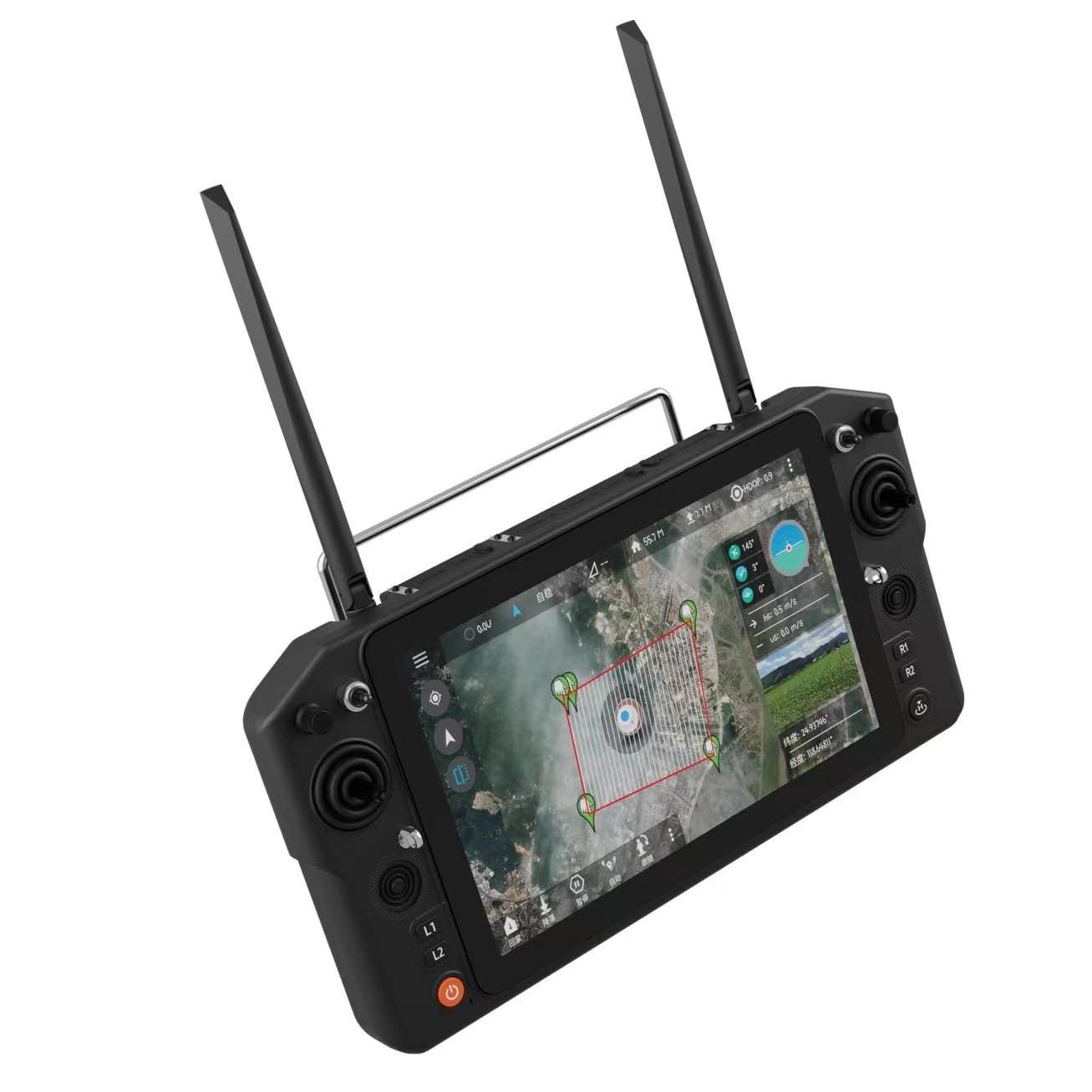

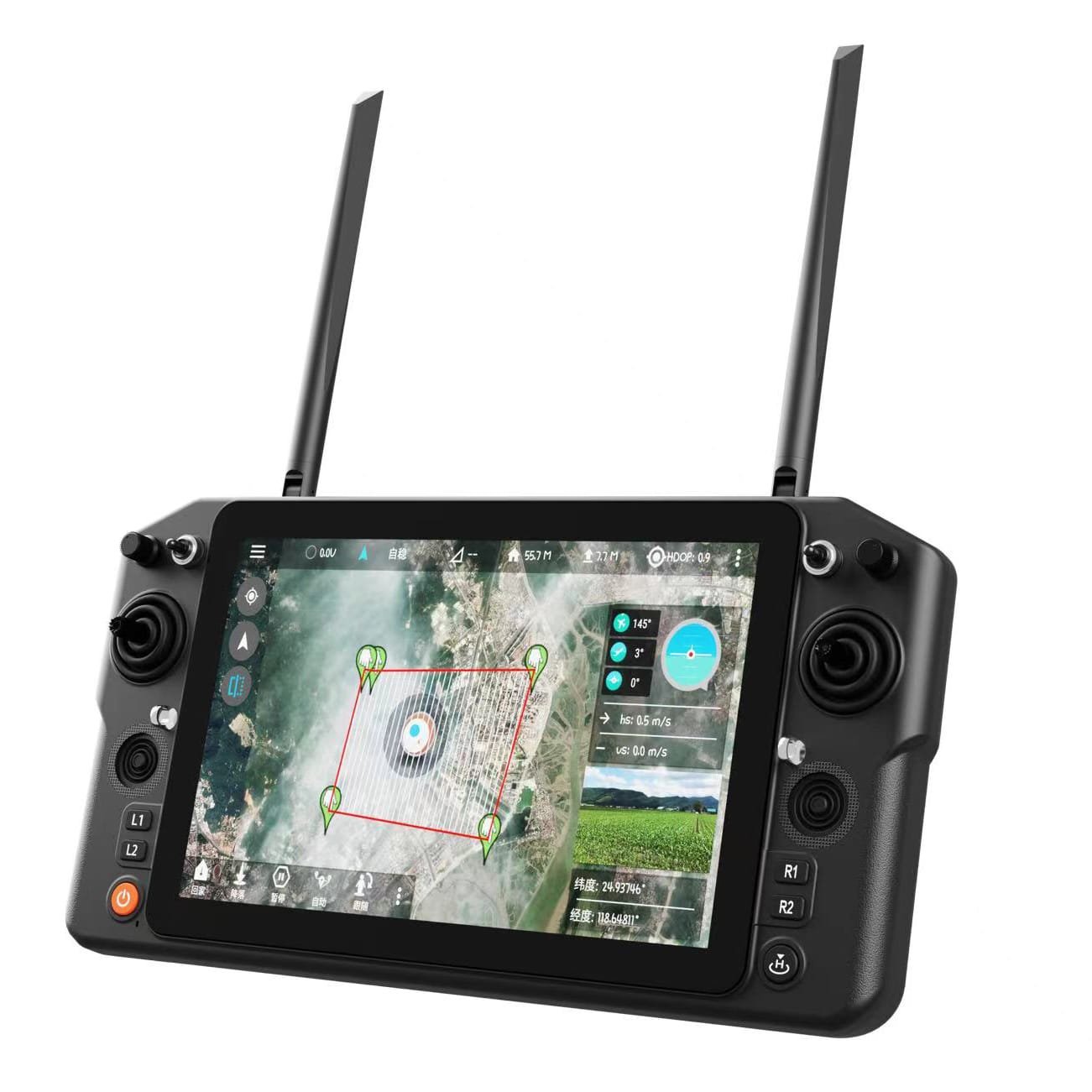

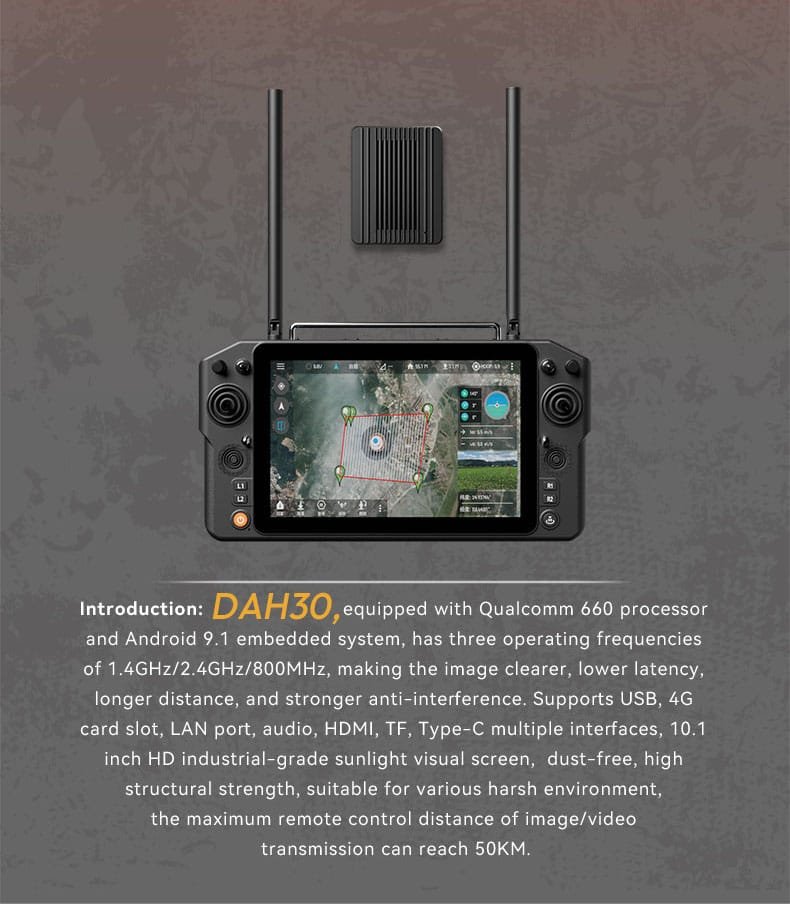

The DAH30 High-Performance Flagship Remote Controller is a cutting-edge device designed for long-range and high-precision drone operations. Featuring stable tri-band communication (1.4GHz/2.4GHz/800MHz), a 10.1-inch sunlight-readable touch screen, and a robust Qualcomm 660 processor, it delivers exceptional performance for industrial, surveillance, and emergency applications. With a 50KM maximum transmission range and rich interface options, the DAH30 is built to handle the most demanding scenarios with ease.

Product Features

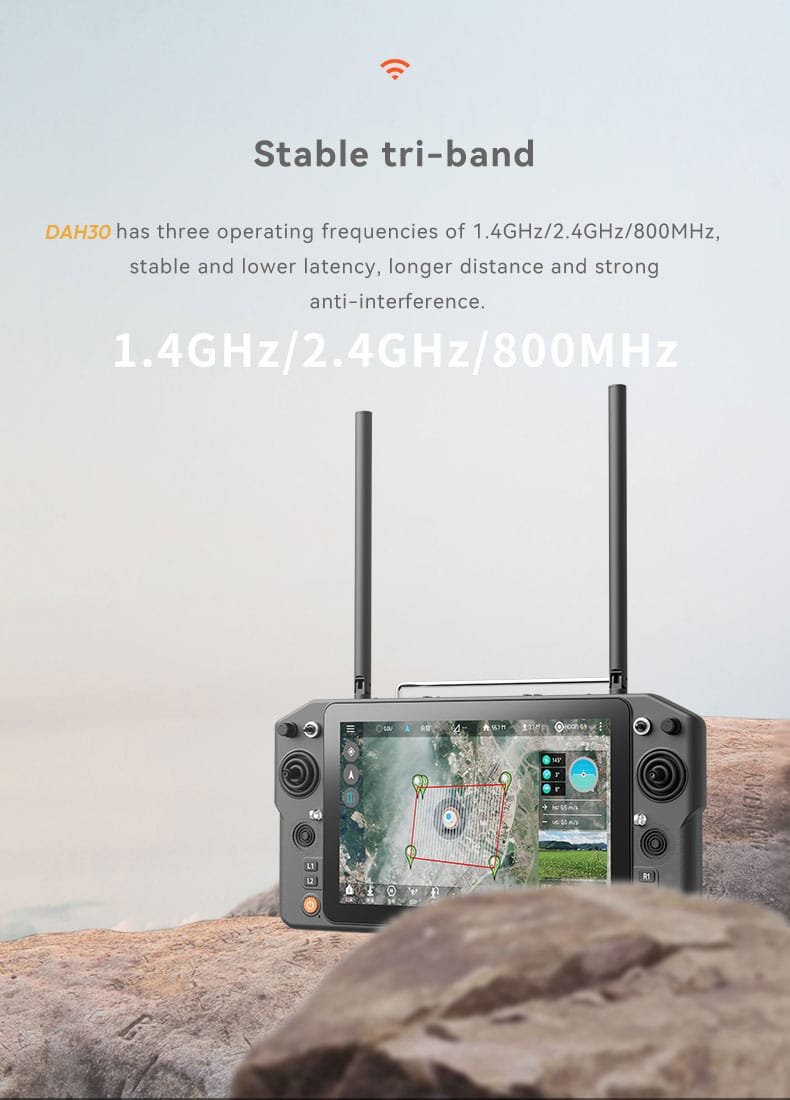

Stable Tri-Band Communication: Supports 1.4GHz/2.4GHz/800MHz for stable signal transmission with lower latency, extended range, and strong anti-interference.

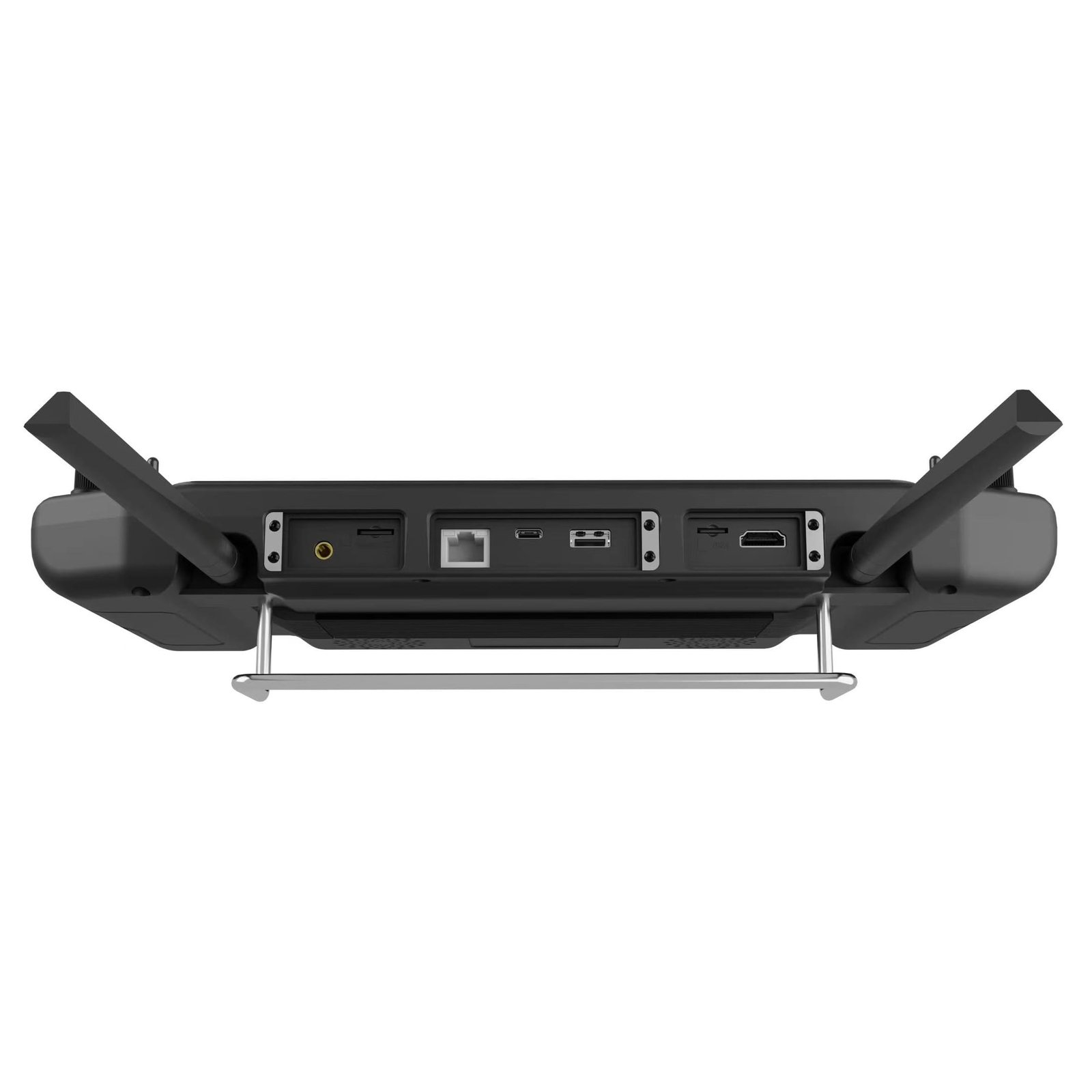

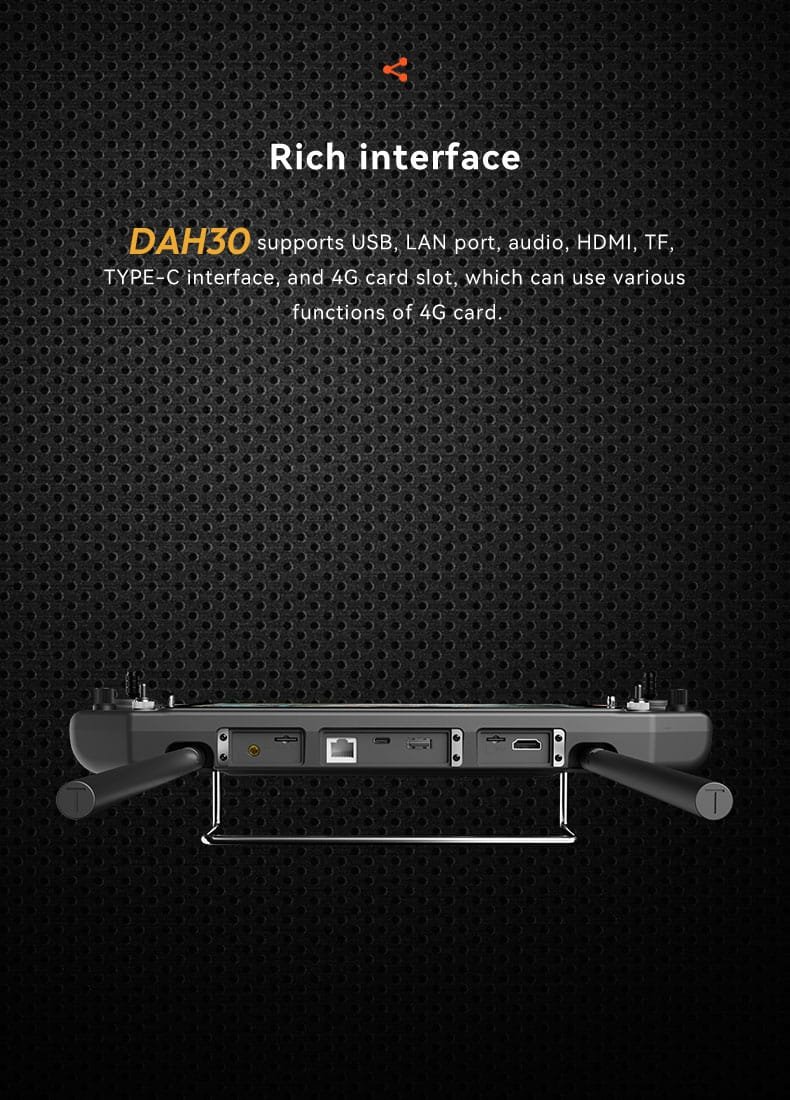

Rich Interface Options: Equipped with USB, LAN port, audio interface, HDMI, TF card slot, Type-C port, and 4G card slot, providing versatile connectivity.

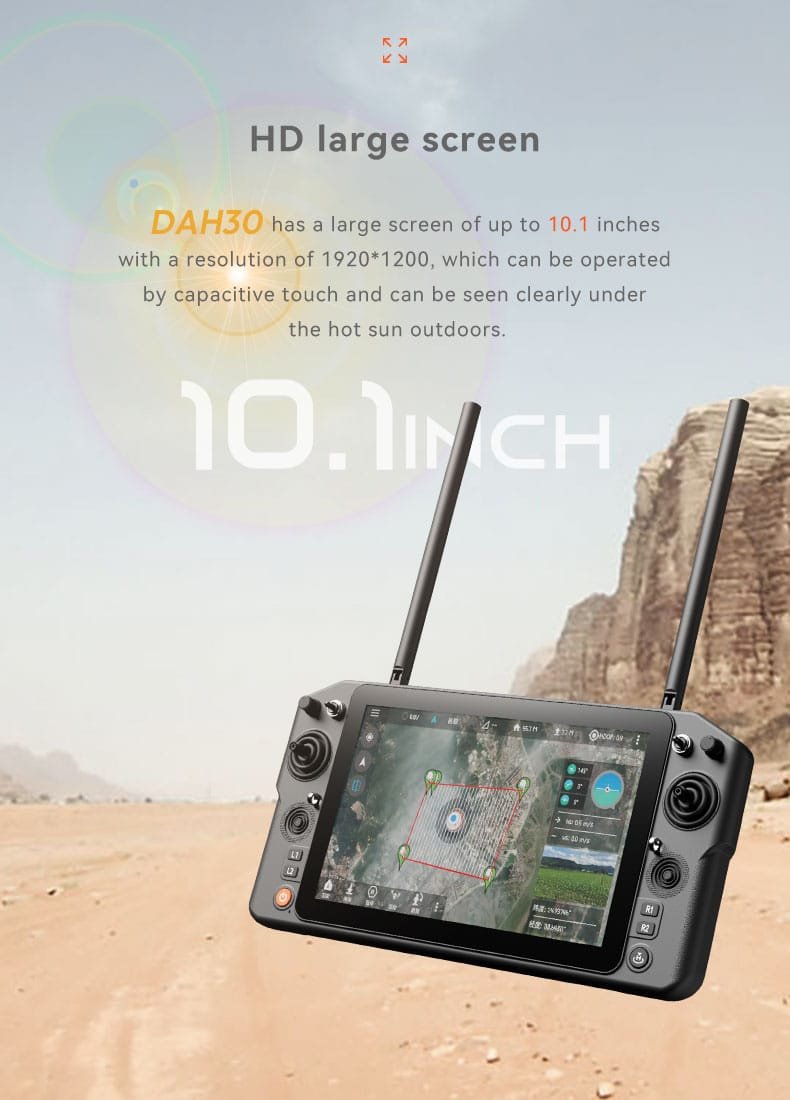

HD Large Screen: Features a 10.1-inch industrial-grade sunlight-readable display with a resolution of 1920×1200. Capacitive multi-touch functionality ensures seamless operation, even outdoors.
Long-Range Transmission: Advanced data link technology enables a remote control distance of 50KM, with a minimum range of 10KM.
High-Performance Platform: Powered by a Qualcomm 660 processor and runs on Android 9.1, supporting smooth multitasking and 3D mapping.

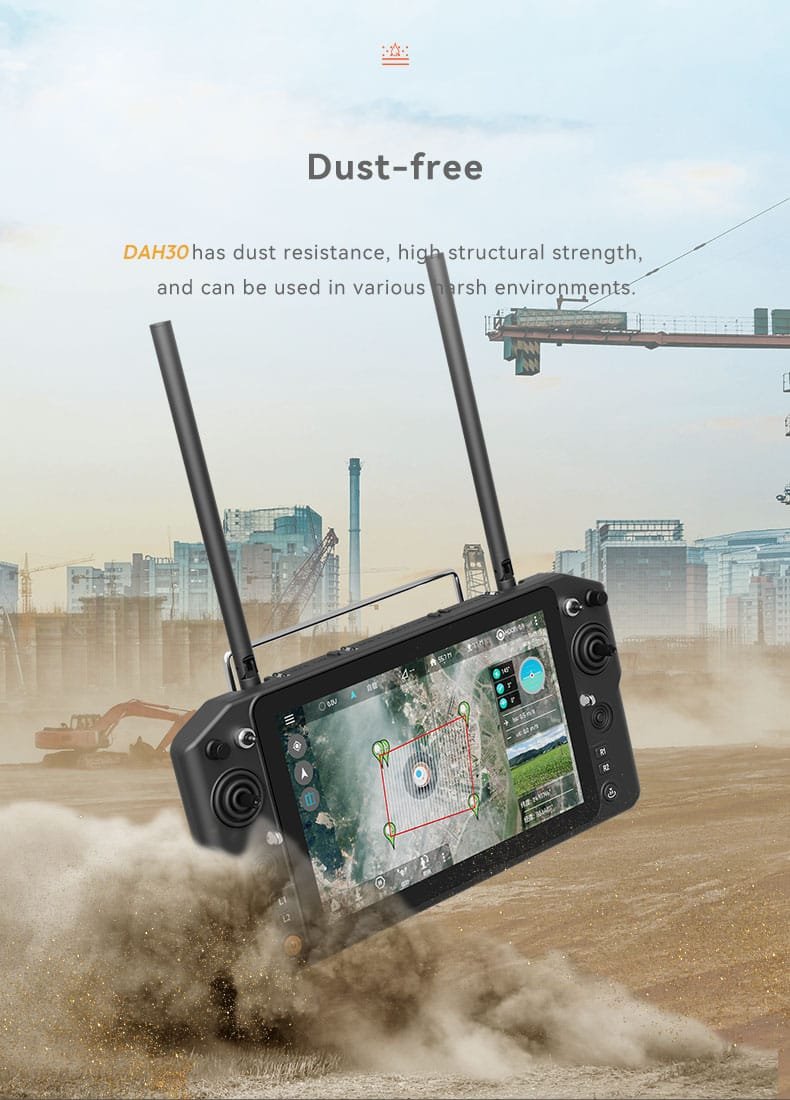

Dust-Free & Rugged Design: Dust-resistant, high-strength structure for use in harsh environments.
Large-Capacity Battery: Built-in 20000mAh battery provides 5 hours of continuous operation.

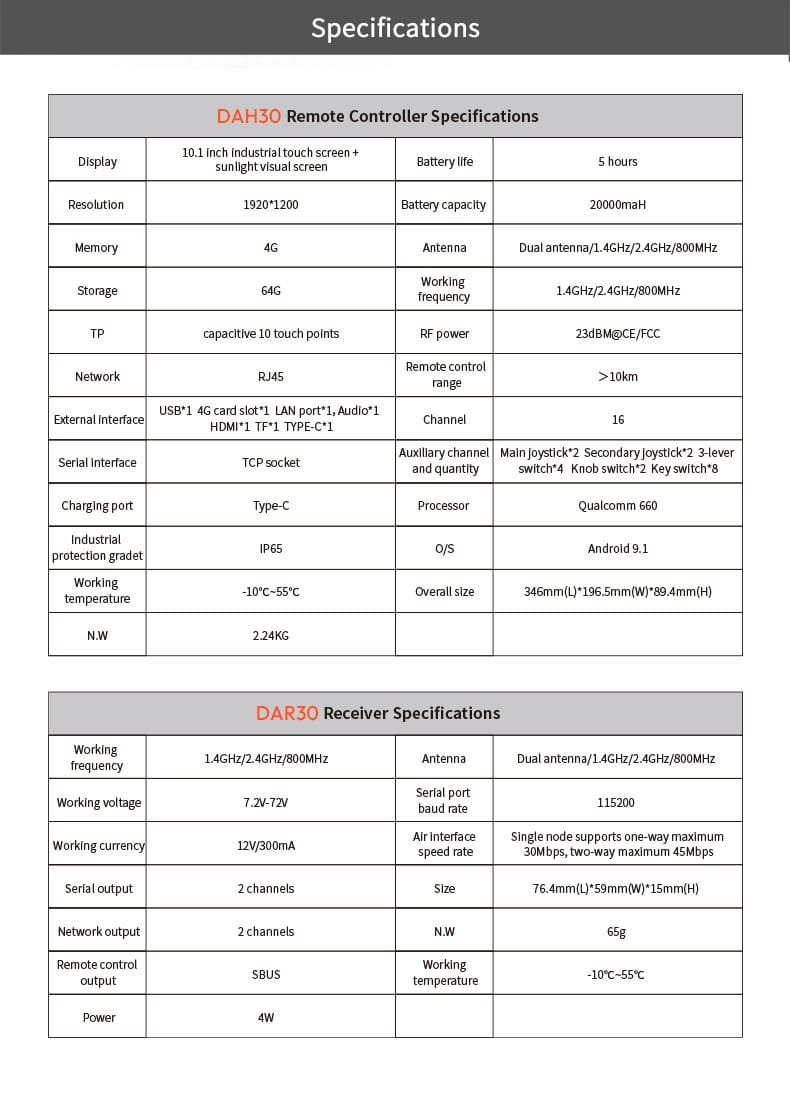

Detailed Technical Parameters

Category	Specifications
Display	10.1-inch industrial-grade touch screen + sunlight-readable screen
Resolution	1920×1200
Memory	4GB
Storage	64GB
Antenna	Dual antennas: 1.4GHz/2.4GHz/800MHz
Battery Capacity	20000mAh
Working Frequency	1.4GHz/2.4GHz/800MHz
Remote Control Range	>10KM (maximum: 50KM)
Protection Grade	IP65
External Interfaces	USB×1, 4G card slot×1, LAN port×1, audio interface×1, HDMI×1, TF×1, Type-C×1
Processor	Qualcomm 660
Operating System	Android 9.1
Operating Temperature	-10°C to 55°C
Dimensions	346mm(L) × 196.5mm(W) × 89.4mm(H)
Weight	2.24kg

Application Scenarios

Drone Long-Distance Control: Provides reliable control and video transmission over a range of up to 50KM.
Industrial Applications: Suitable for harsh environments such as construction sites and mining operations.
High-Altitude Monitoring: Ideal for precision aerial photography and real-time video streaming for large-scale projects.
Emergency Response: Enables quick deployment and live video transmission for disaster relief and rescue operations.
Agricultural Monitoring: Facilitates long-range agricultural data collection and farm mapping.
