DA10 PRO three-axis pan tilt camera, 2K high-definition anti shake.

Name: DA10 PRO three-axis pan tilt camera, 2K high-definition anti shake.
Brand: UAVAUTO
SKU: DA10 PRO
Price: 999 USD
Availability: InStock

SKU:DA10 PRO

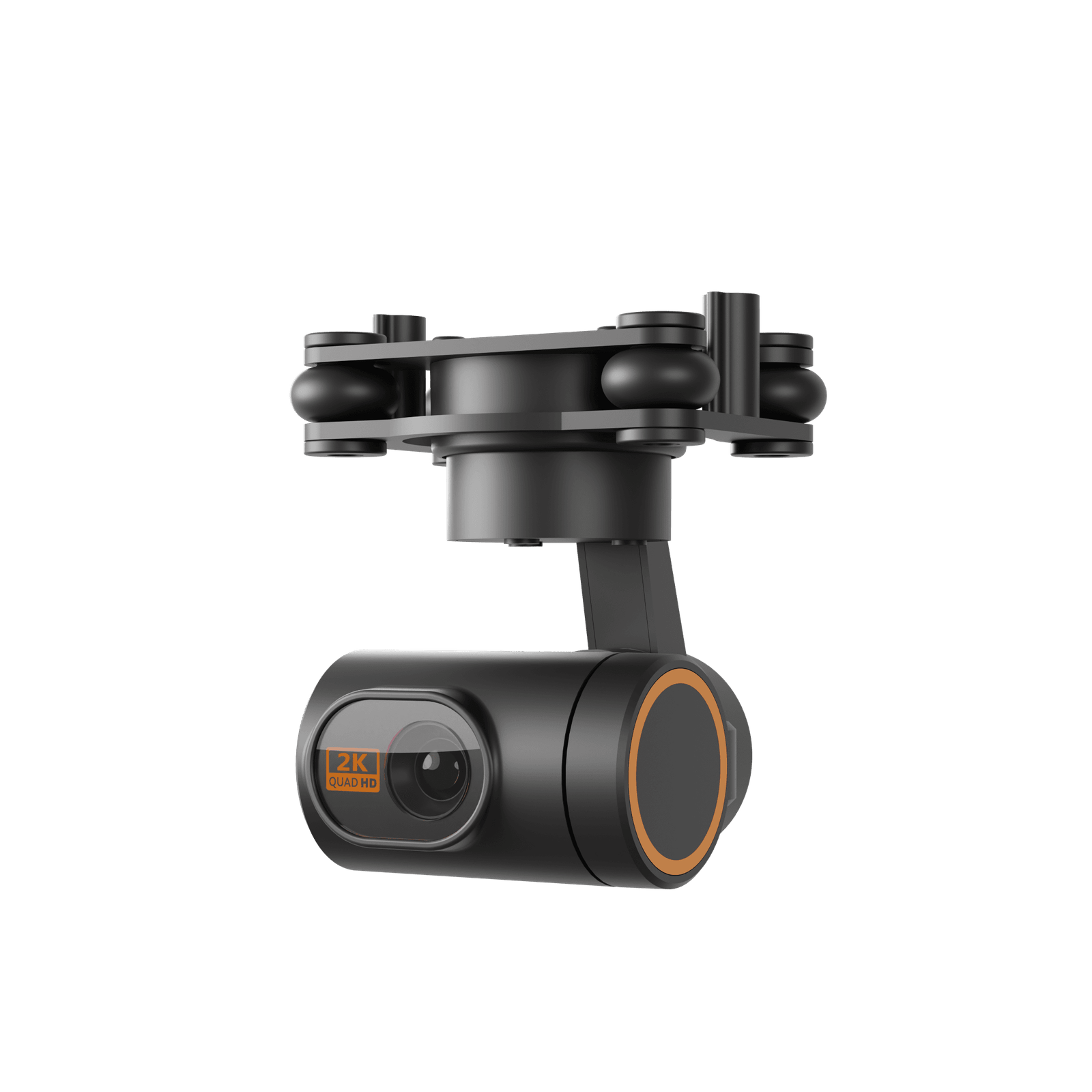

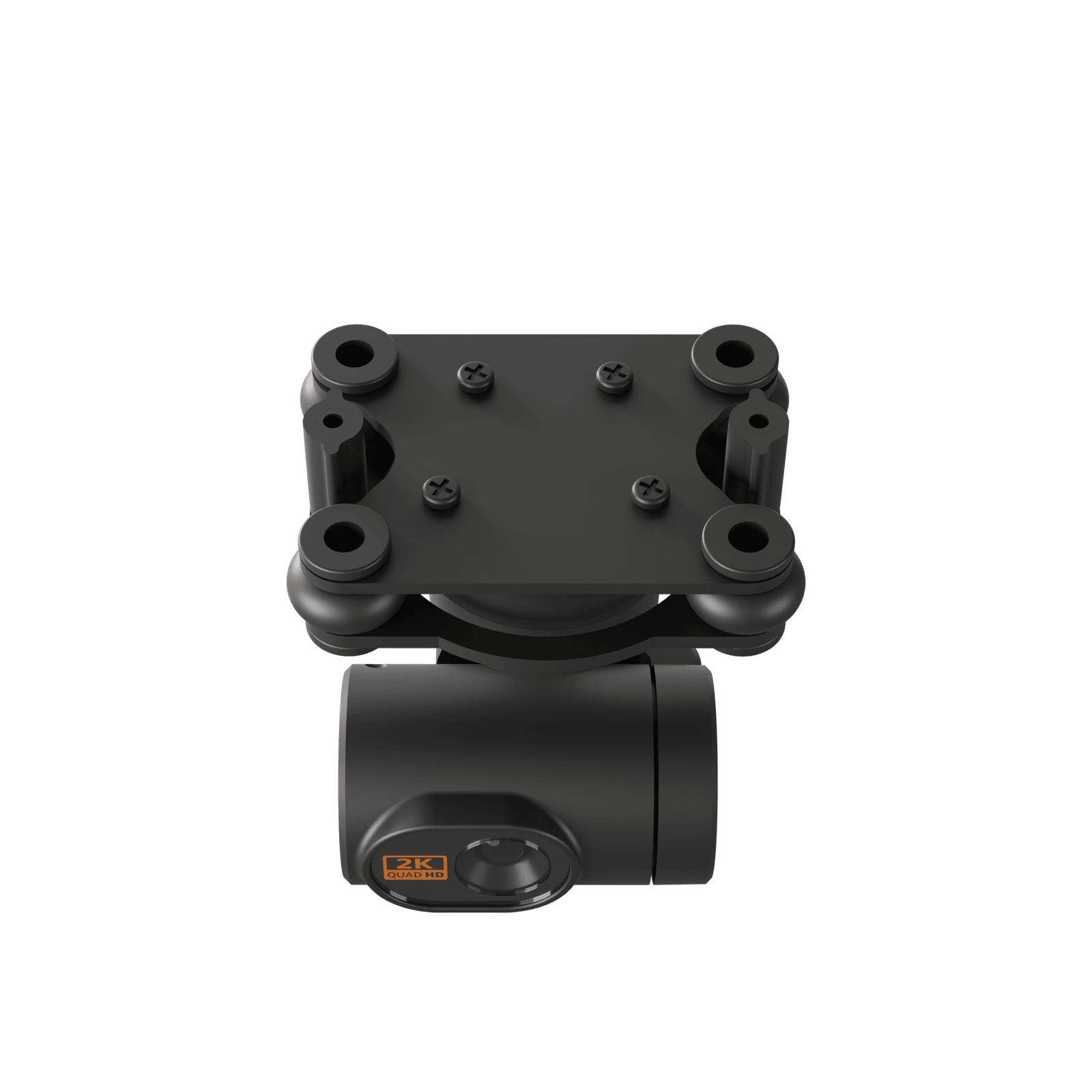

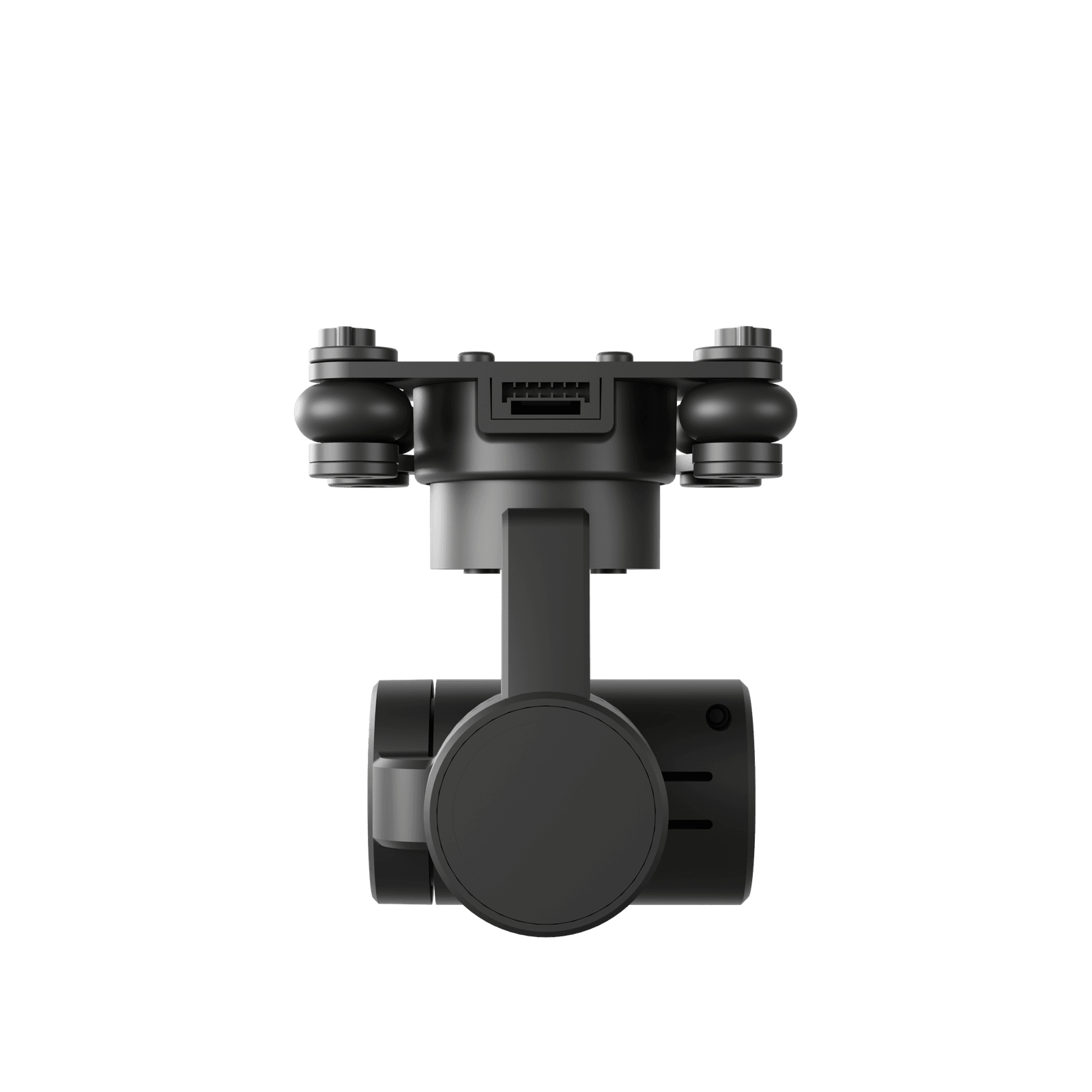

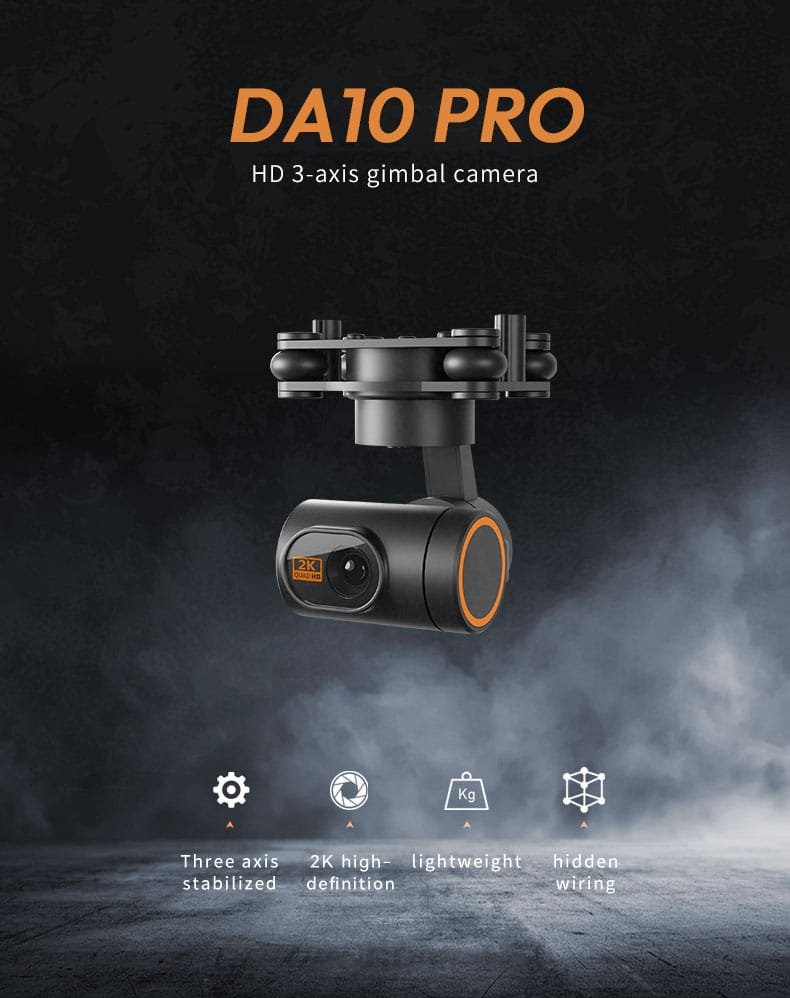

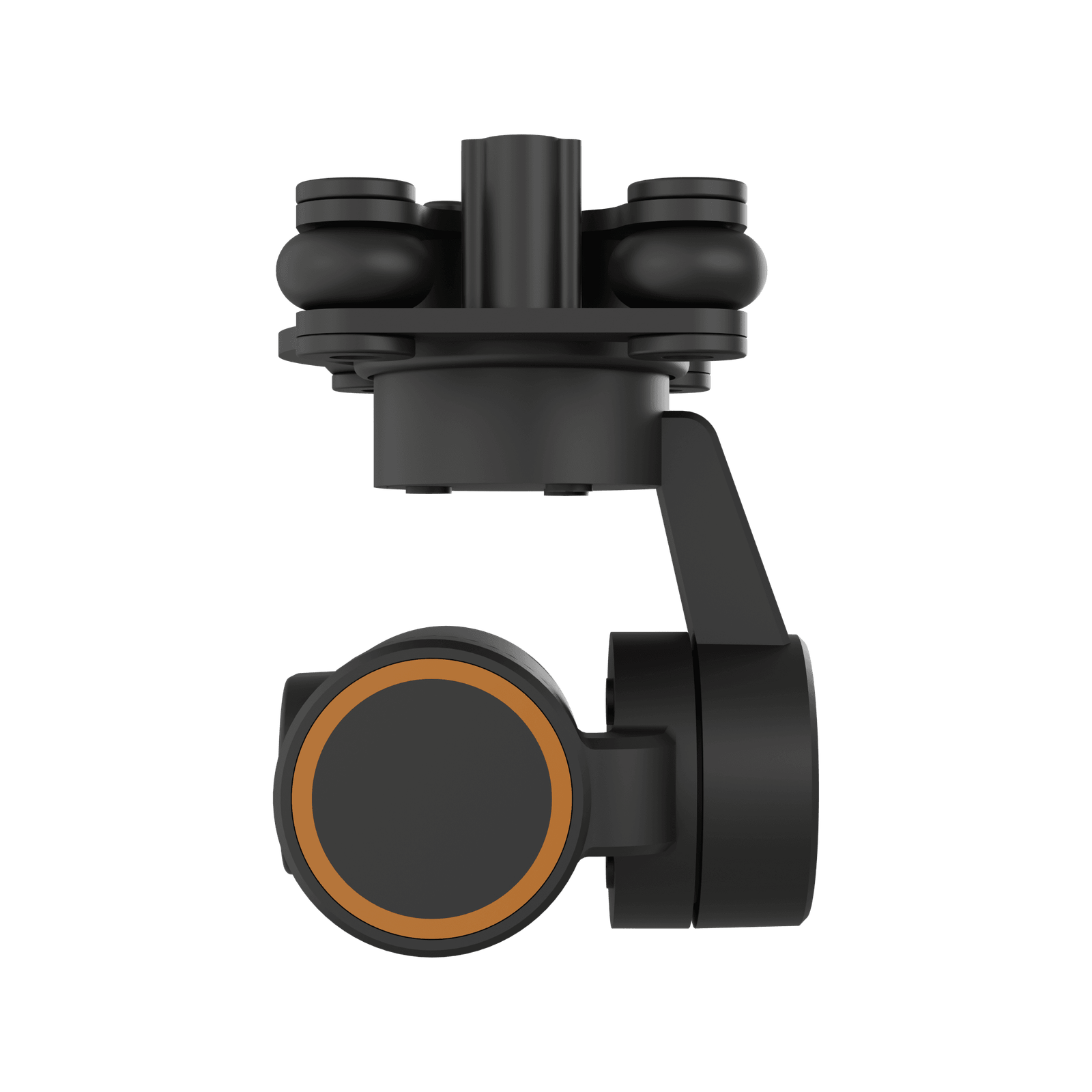

The DA10 PRO is a high-performance 3-axis gimbal camera designed specifically for drone applications. It features a 2K high-definition distortion-free camera, providing clear and stable imagery even in dynamic flight conditions. The gimbal's lightweight and compact design makes it ideal for aerial platforms, ensuring minimal payload impact and enhancing the overall flight performance of the drone.

Share on:

1. Overview

2. Product Features

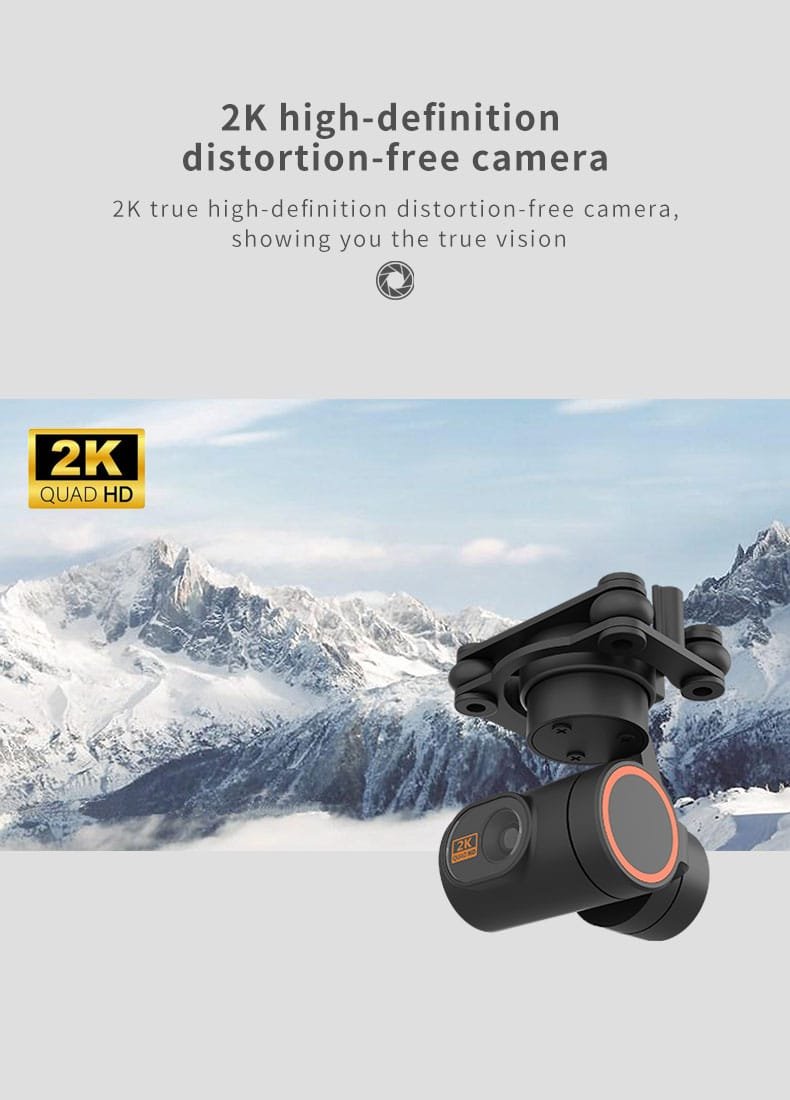

2K High-Definition Distortion-Free Camera: Provides true high-definition visuals without distortion, ensuring a clear and accurate view.

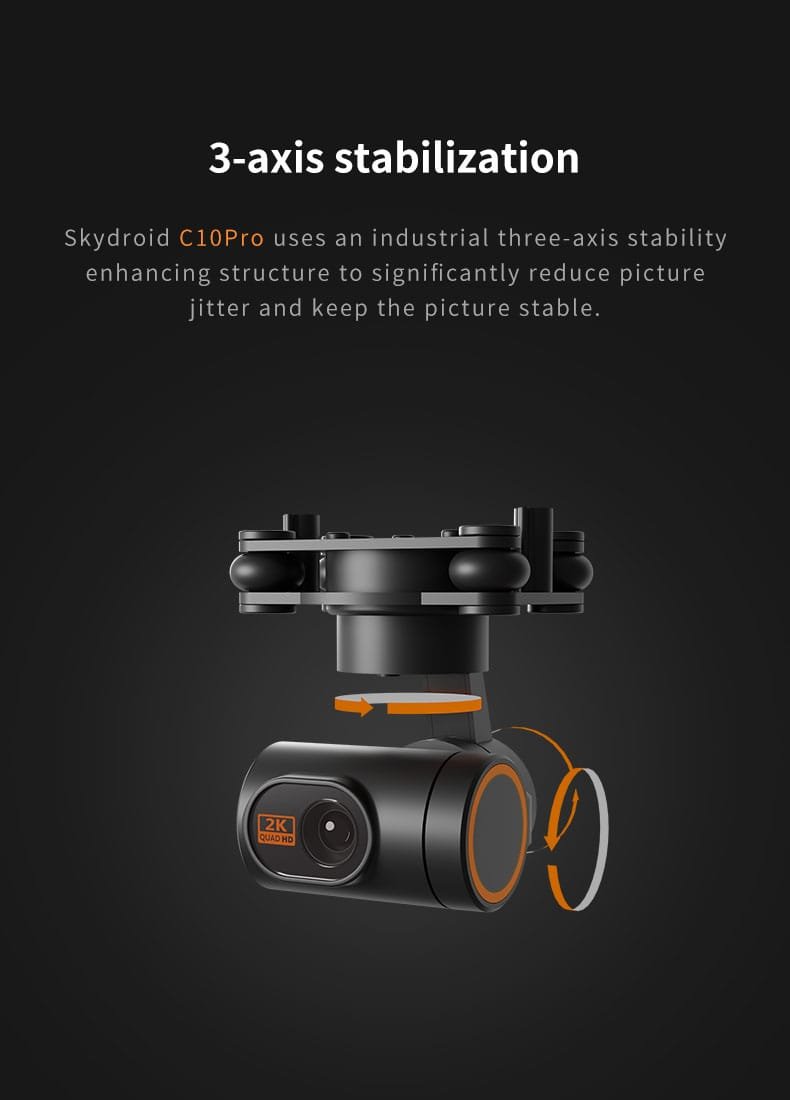

3-Axis Stabilization: Uses industrial-grade three-axis stabilization technology to significantly reduce picture jitter, keeping the image stable even during movement.

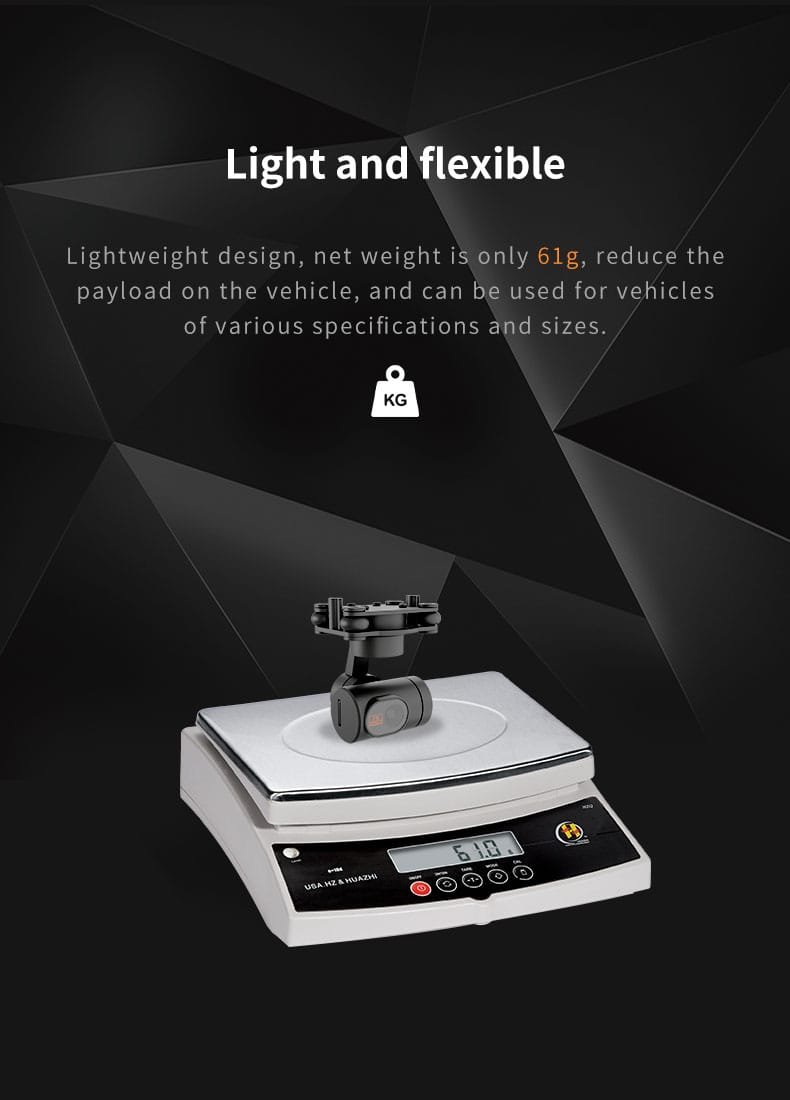

Light and Flexible: The net weight is only 61g, reducing the payload on the vehicle, making it adaptable to various vehicles of different specifications and sizes.

3. Detailed Technical Parameters

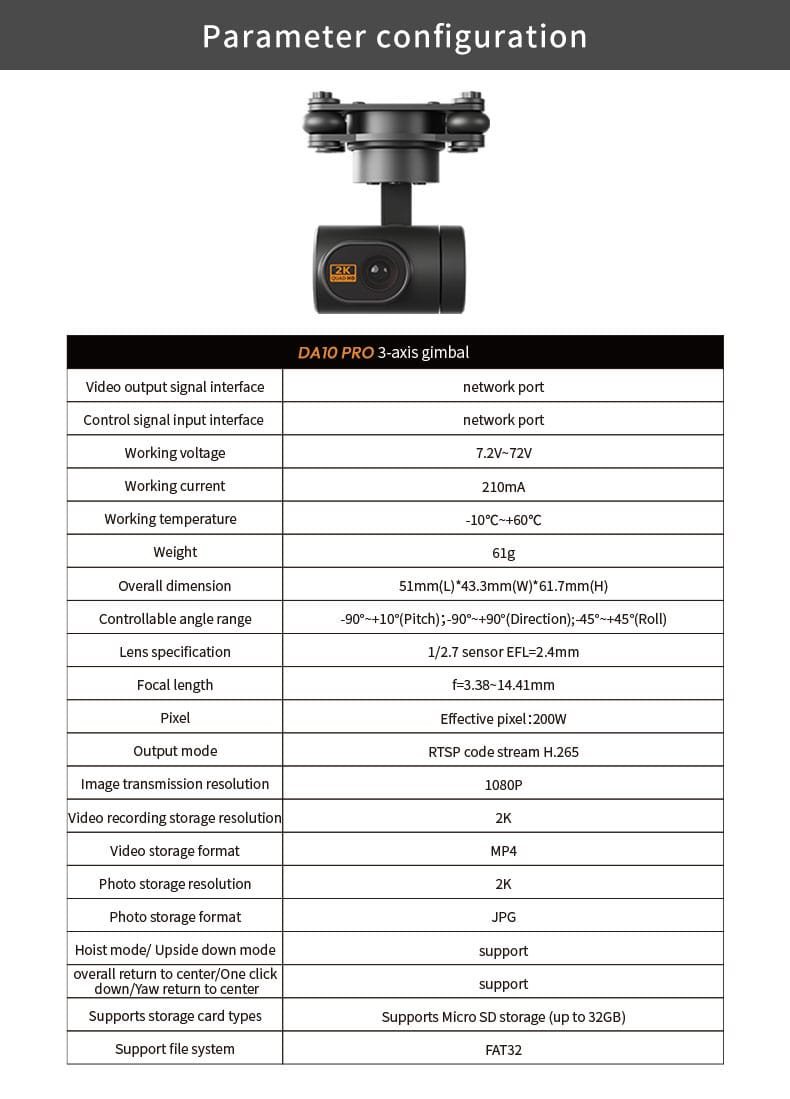

DA10 PRO 3-Axis Gimbal Specifications

Video output signal interface	Network port
Control signal input interface	Network port
Working voltage	7.2V-72V
Working current	210mA
Working temperature	-10°C to 60°C
Weight	61g
Overall dimension	51mm(L) × 43.3mm(W) × 61.7mm(H)
Controllable angle range	-90° to +10° (Pitch); -90° to +90° (Direction); -45° to +45° (Roll)
Lens specification	1/2.7 sensor EFL=2.4mm
Focal length	f=3.38-14.41mm
Pixel	Effective pixel: 200W
Output mode	RTSP code stream H.265
Image transmission resolution	1080P
Video recording storage resolution	2K
Video storage format	MP4
Photo storage resolution	2K
Photo storage format	JPG
Hoist mode/Upside down mode	Support
Overall return to center/One click down/yaw return to center	Support
Supports storage card types	Supports Micro SD storage (up to 32GB)
Support file system	FAT32

4. Application Scenarios

Aerial Cinematography: Ideal for drone-based filmmaking and photography, the DA10 PRO ensures stable and high-quality footage even during complex maneuvers.
Surveying and Mapping: The high-definition camera and stabilization system make it suitable for geospatial data collection, including aerial surveying and mapping applications.
Inspection and Monitoring: Perfect for monitoring and inspecting infrastructure such as power lines, wind turbines, and buildings, offering clear visuals in real-time with the added benefit of enhanced stability.
