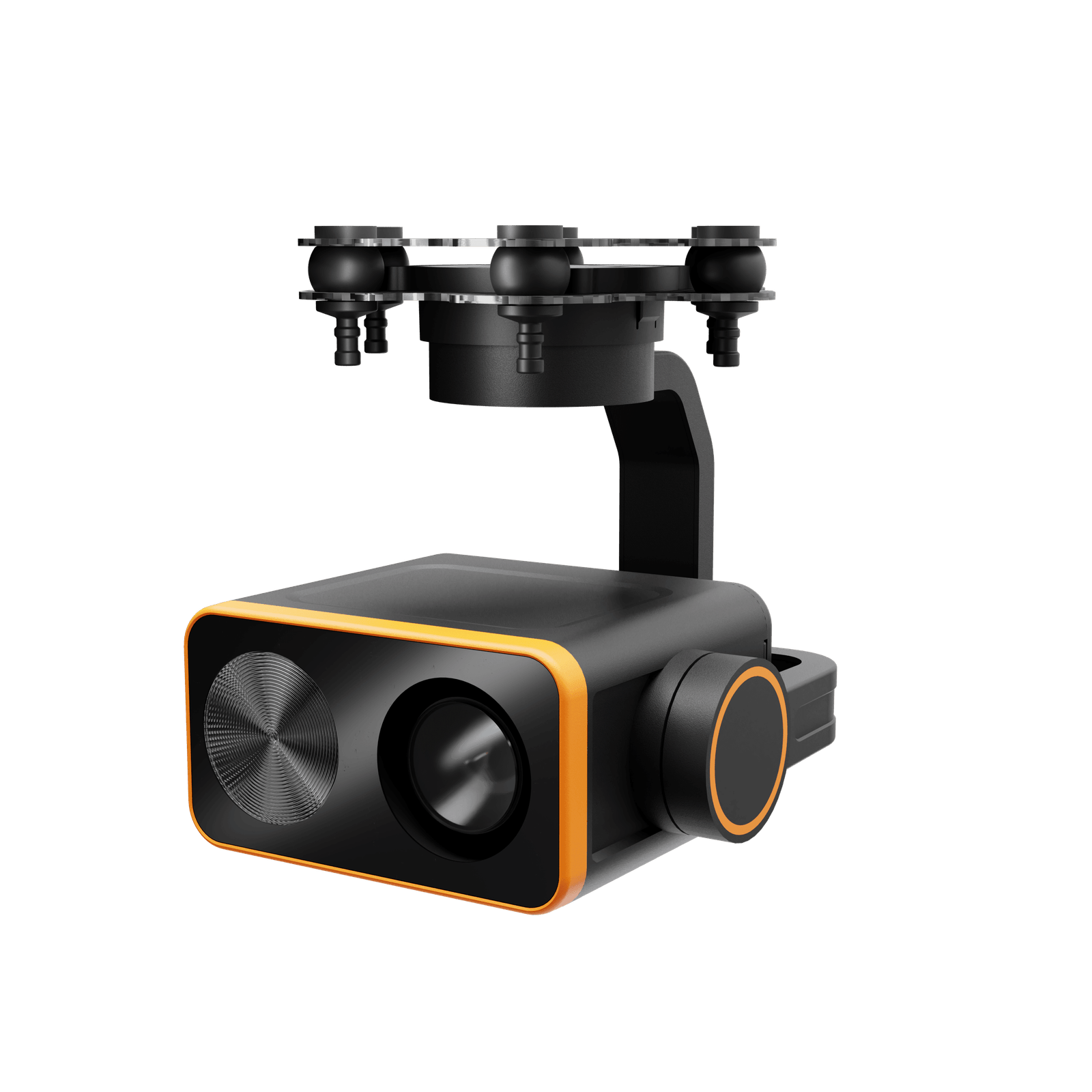

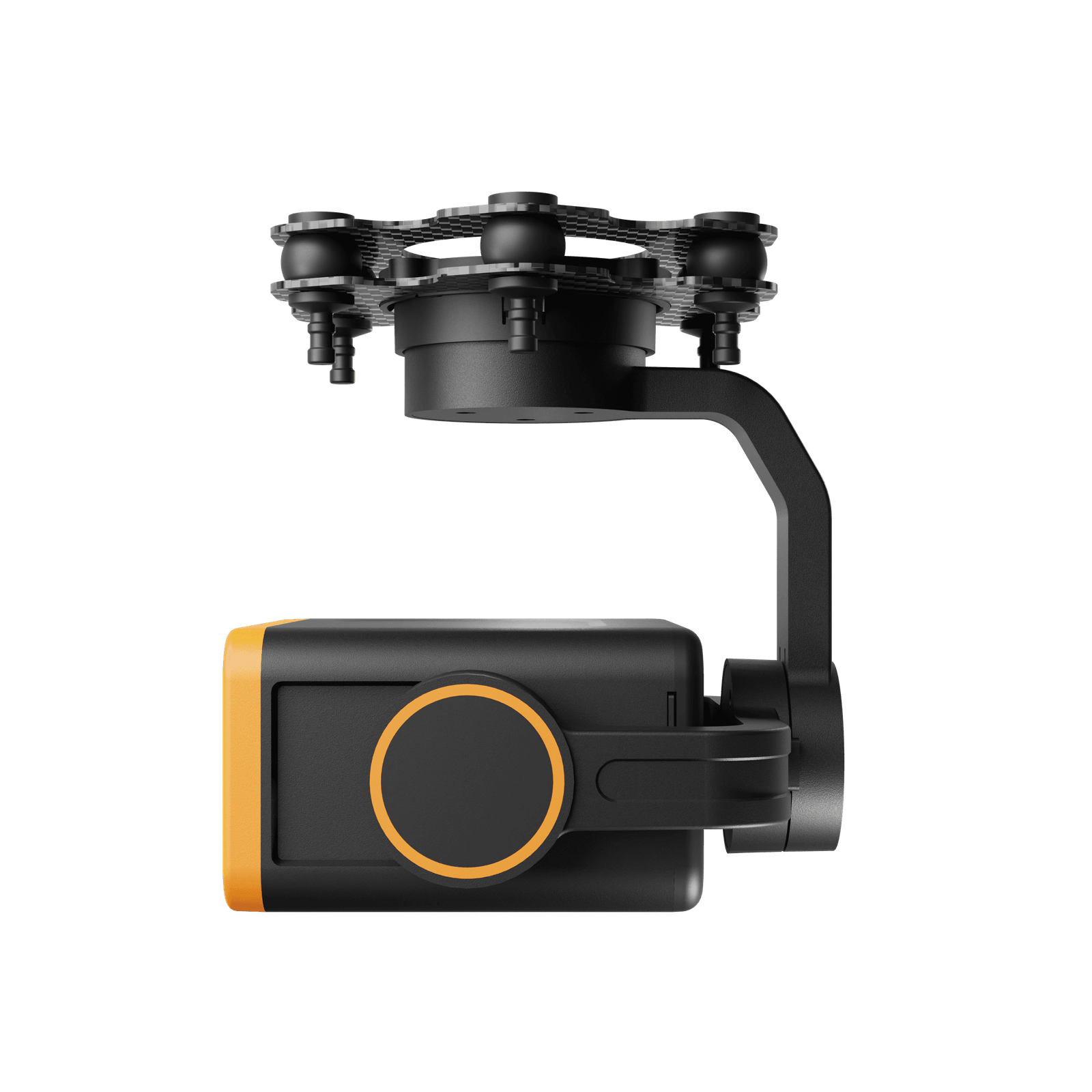

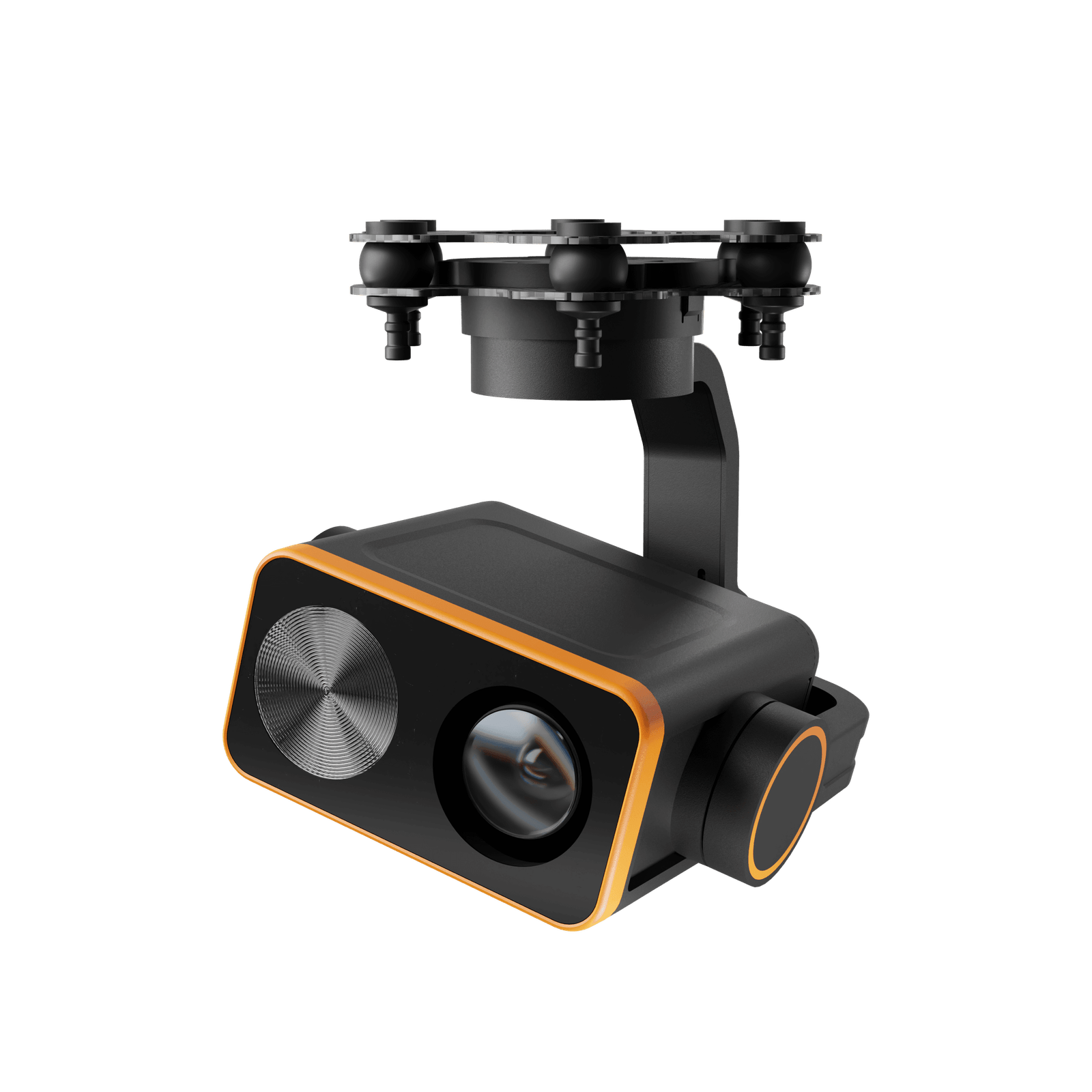

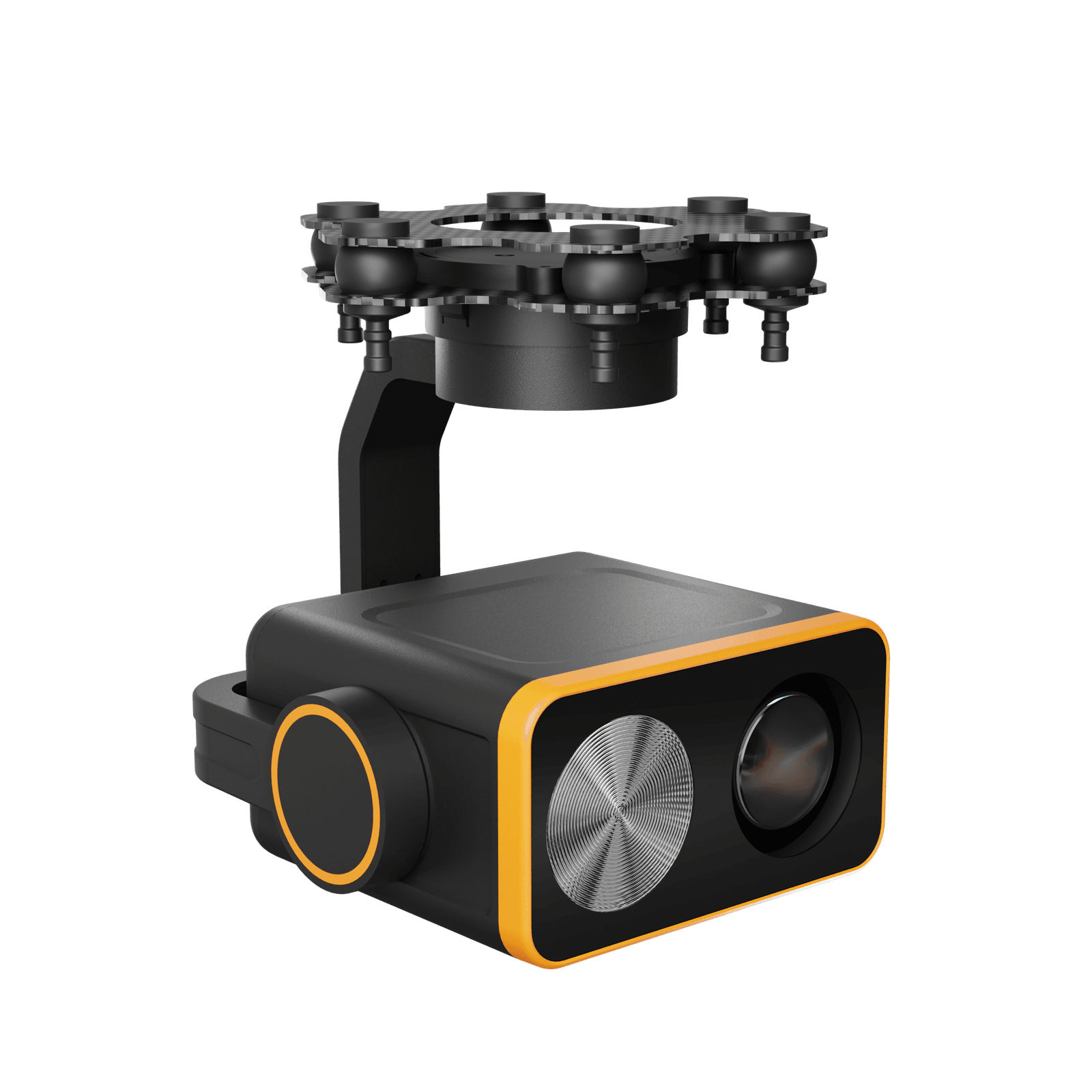

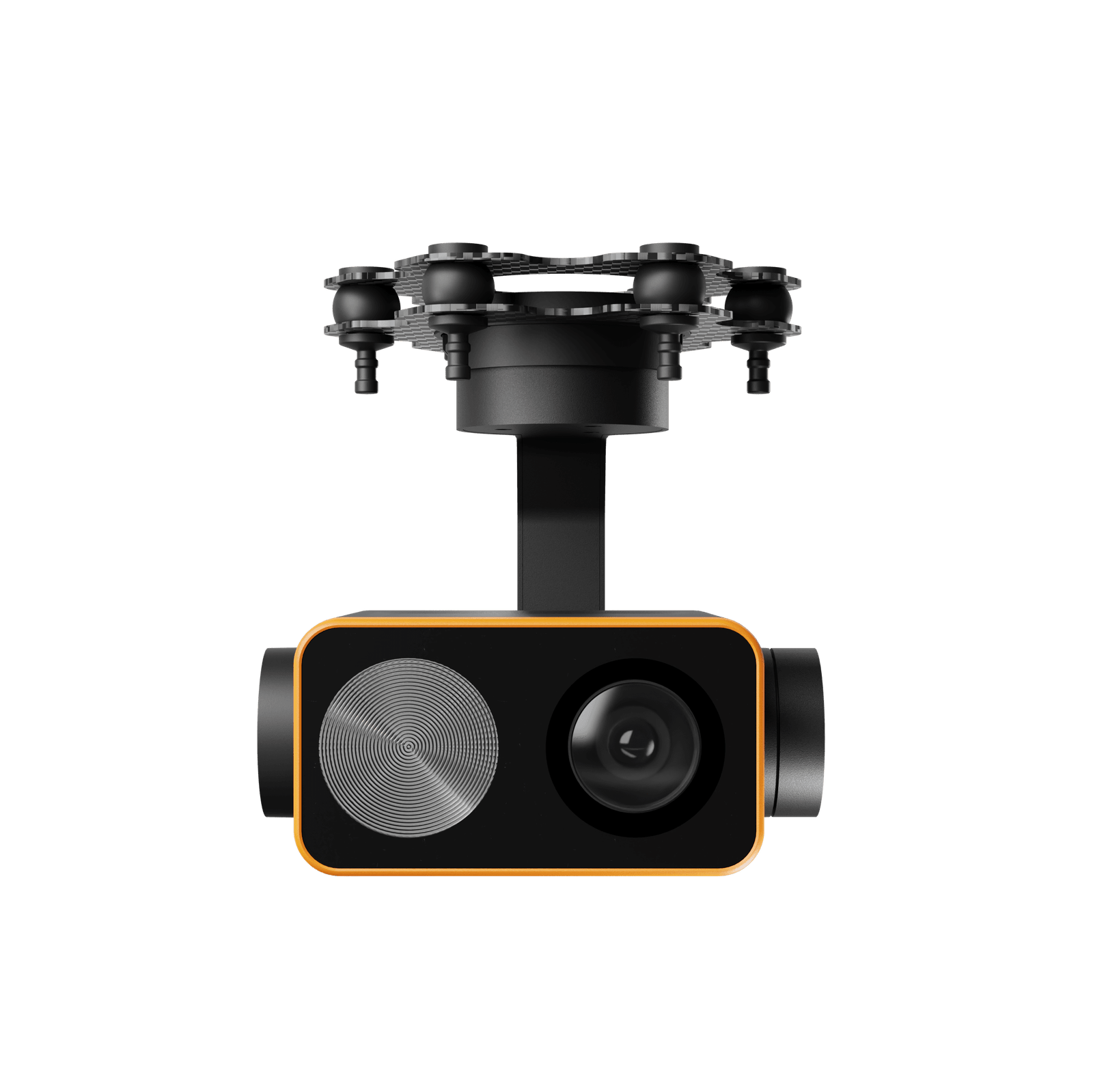

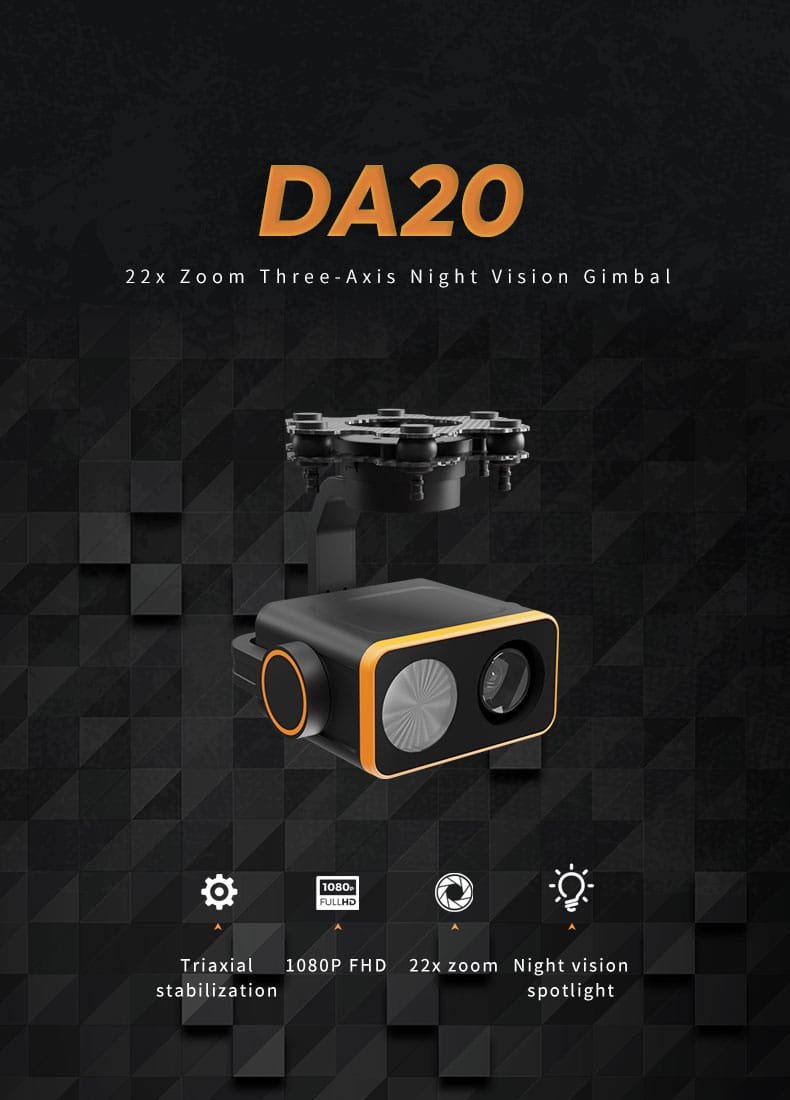

DA20 multifunctional gimbal, three-axis stability, 22x zoom+night vision spotlight, paired with variable zoom spotlight

SKU:DA20
The DA20 is a high-performance, 22x zoom, three-axis stabilized gimbal system designed to provide excellent visual capabilities in various operational environments. It combines a powerful 1080p high-definition camera, a night vision spotlight, and robust triaxial stabilization, making it suitable for a wide range of applications, especially in challenging conditions like night-time or long-range surveillance.

Quantity:

Share on:

1. DA20 Gimbal System Overview

The DA20 is a high-performance, 22x zoom, three-axis stabilized gimbal system designed to provide excellent visual capabilities in various operational environments. It combines a powerful 1080p high-definition camera, a night vision spotlight, and robust triaxial stabilization, making it suitable for a wide range of applications, especially in challenging conditions like night-time or long-range surveillance.

2. Product Features

  • 22x Zoom: Provides a wider visual range, allowing for observation from greater distances. This zoom feature is essential for handling diverse operational needs such as surveillance or search and rescue.
  • Variable Focus Spotlight: The DA20 is equipped with a high-brightness, variable-focus spotlight to enhance night-time shooting capabilities. It allows the system to operate effectively in low-light or dark conditions, making it ideal for complex working environments.
  • 1080p HD Distortion-Free Camera: The DA20 features a high-definition camera that delivers sharp, realistic, and distortion-free images at 30fps. It ensures clear imaging for long-range or critical operational needs.
  • Triaxial Stabilization: The gimbal uses industrial-grade three-axis stabilization to reduce image jitter and ensure stable, smooth footage even in dynamic conditions.
  • Compact and Versatile Design: With a compact size and multiple mounting options, the DA20 can be used in various UAVs and other platforms for enhanced functionality in different scenarios.

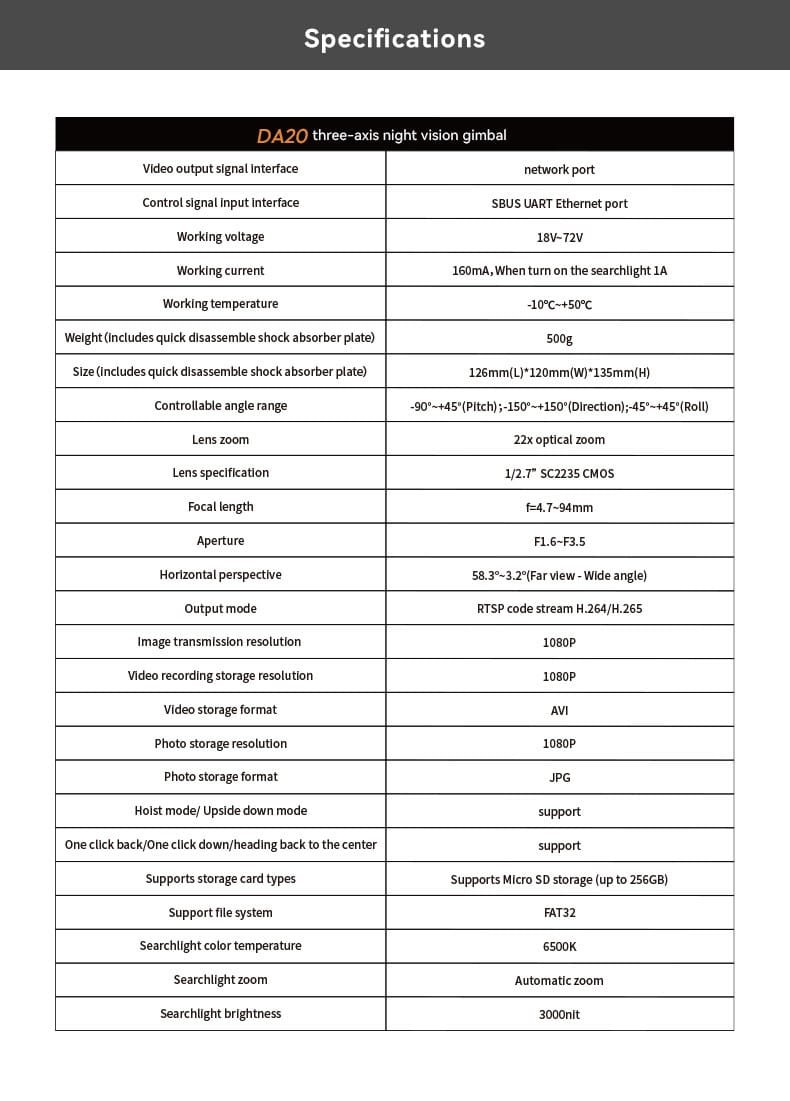

3. Detailed Technical Parameters

Parameter Specification
Video Output Signal Interface Network port
Control Signal Input Interface SBUS UART Ethernet port
Working Voltage 18V-72V
Working Current 160mA (1A when spotlight is turned on)
Working Temperature -10°C~+50°C
Weight 500g (including shock absorber plate)
Dimensions 126mm(L) × 120mm(W) × 135mm(H)
Controllable Angle Range -90° to +45° (Pitch); -150° to +150° (Direction); -45° to +45° (Roll)
Lens Zoom 22x optical zoom
Lens Specification 1/2.7” SC2235 CMOS
Focal Length f=4.7~94mm
Aperture F1.6~F3.5
Horizontal Perspective 58.3°~3.2° (Far view ~ Wide angle)
Output Mode RTSP code stream H.264/H.265
Image Transmission Resolution 1080P
Video Recording Storage Resolution 1080P
Video Storage Format AVI
Photo Storage Resolution 1080P
Photo Storage Format JPG
One-click Features One-click back, one-click down, heading back to the center
Storage Support Supports Micro SD (up to 256GB)
File System FAT32
Searchlight Color Temperature 6500K
Searchlight Zoom Automatic zoom
Searchlight Brightness 3000nits

4. Application Scenarios

  • Night-Time Surveillance and Search and Rescue: The DA20’s variable focus spotlight and high-definition camera make it ideal for operations in low-light conditions, ensuring clear visibility for search and rescue missions at night.
  • Long-Range Monitoring: The 22x zoom allows for extended monitoring capabilities, ideal for surveying large areas or tracking distant targets.
  • Law Enforcement and Security: This system can be used by law enforcement for surveillance in complex environments, such as monitoring crowds or surveillance of buildings from a distance.
  • Inspection and Surveying: For industrial applications, the DA20 is useful for detailed inspections of large infrastructures like buildings, bridges, or power lines, especially with its ability to zoom in on small, hard-to-reach areas.
