DAG20 Professional Remote Control: 7-inch large screen, 8-12 hours of battery life, 30KM transmission, Qualcomm chip+dual frequency switching, opening up a new experience of long-distance control

Name: DAG20 Professional Remote Control: 7-inch large screen, 8-12 hours of battery life, 30KM transmission, Qualcomm chip+dual frequency switching, opening up a new experience of long-distance control
Brand: UAVAUTO
SKU: DAG20
Price: 999 USD
Availability: InStock

SKU:DAG20

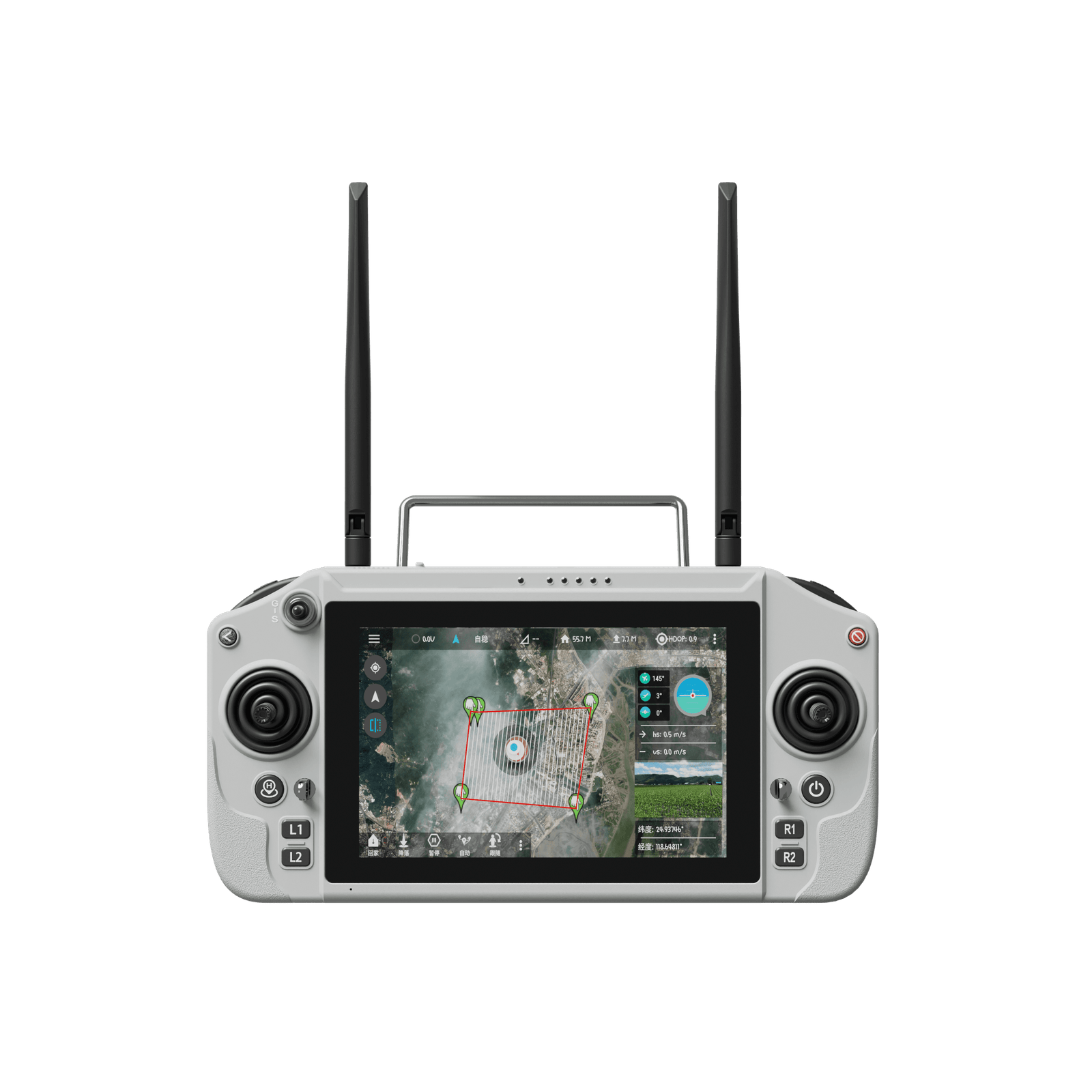

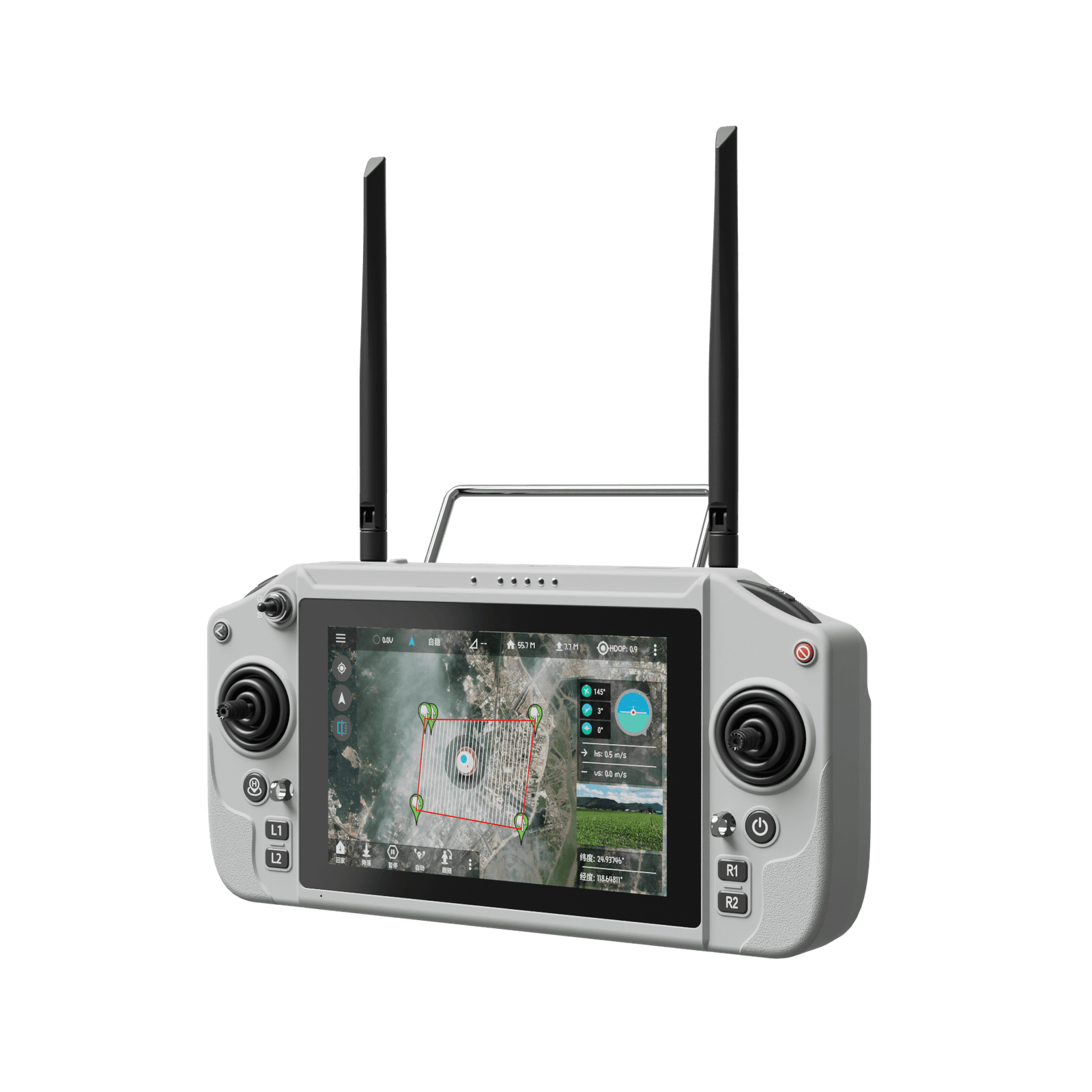

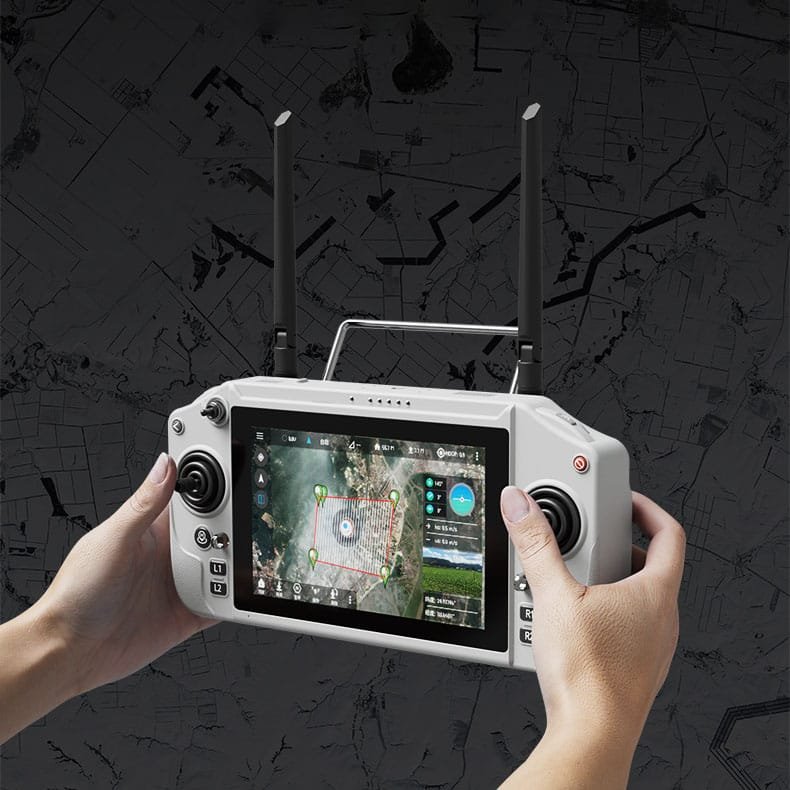

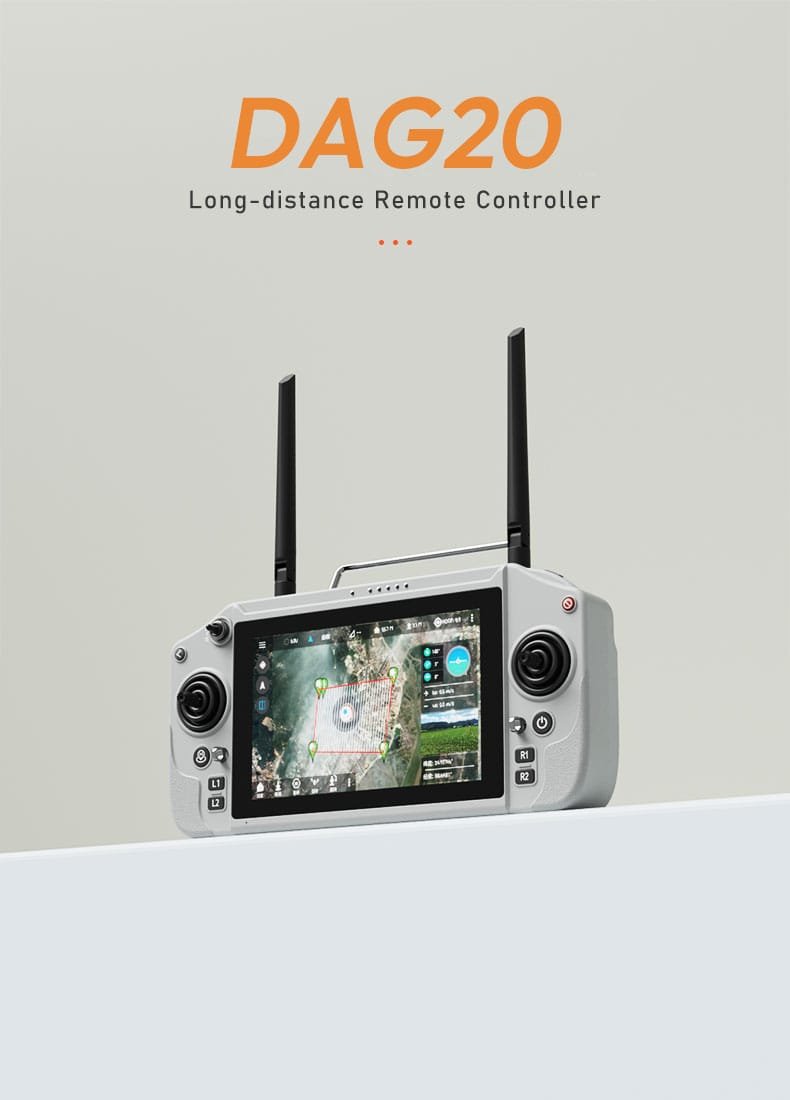

DAG20 is a high-performance remote control system designed for drone operations, featuring advanced functions and powerful performance, making it suitable for various professional fields. This remote control is equipped with a high-resolution display, supports long-distance image transmission and control, has an automatic dual-frequency band switch (2.4GHz/5.8GHz), and offers efficient battery life and fast charging, ensuring stable control of the drone in different environments.

Share on:

1. Overview

2. Product Features

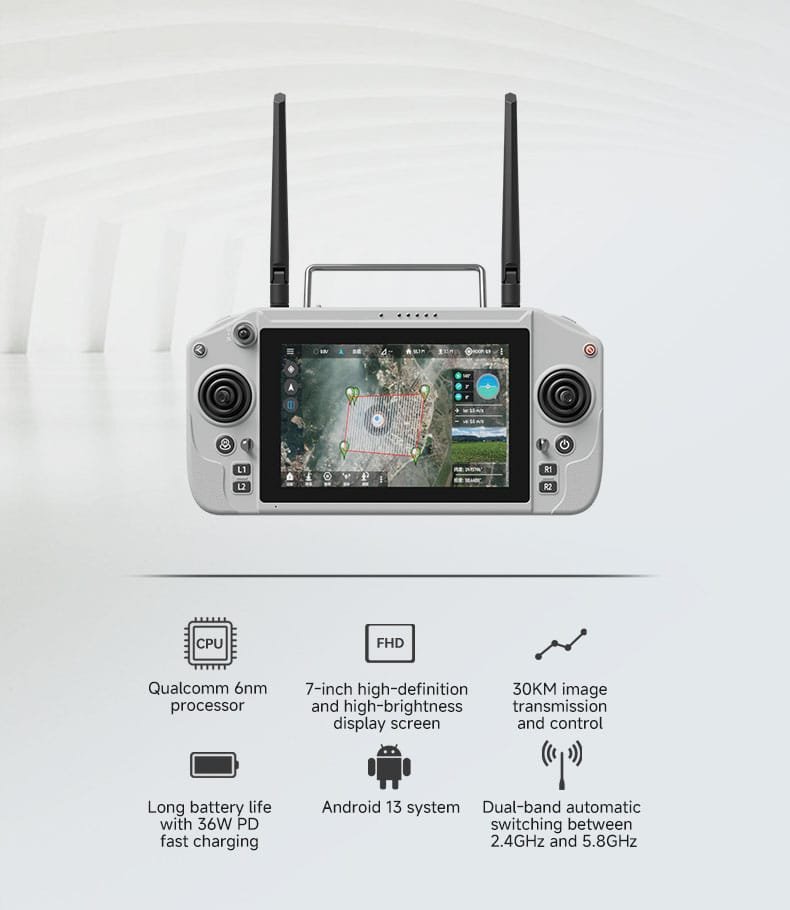

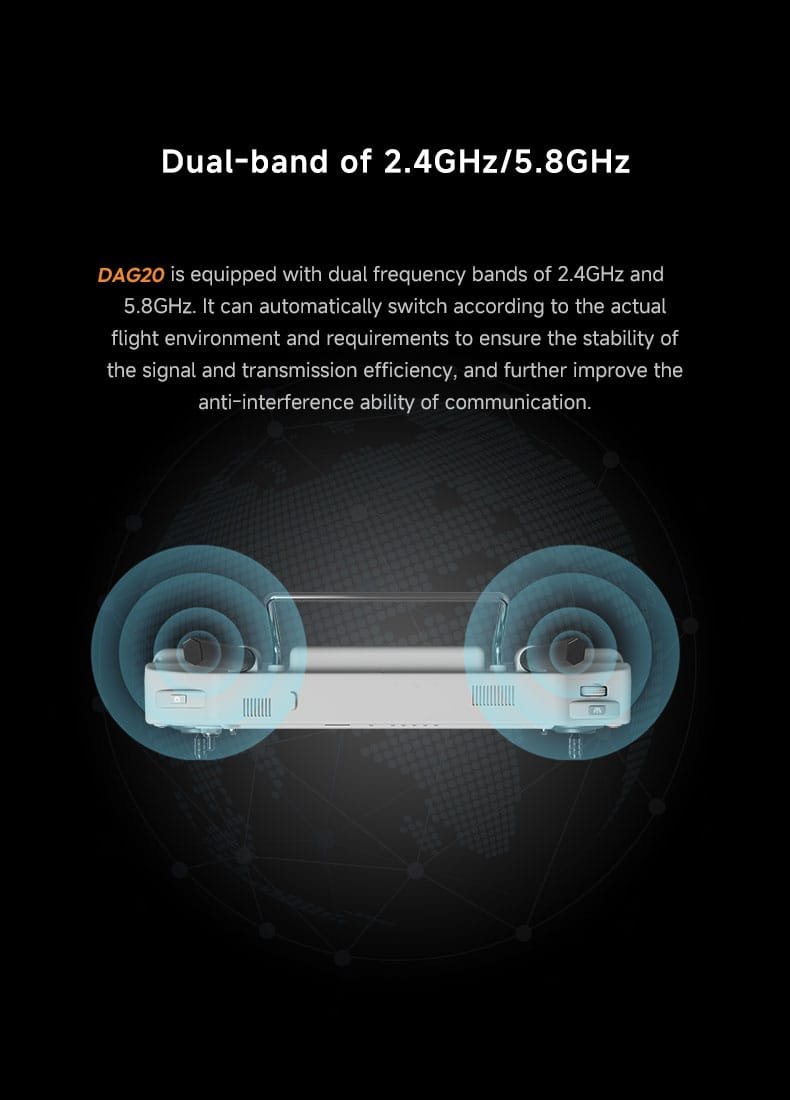

Dual-band of 2.4GHz/5.8GHz: The DAG20 is equipped with dual-frequency bands (2.4GHz/5.8GHz), which can automatically switch based on the flight environment, ensuring stable signal transmission, improving transmission efficiency, and enhancing anti-interference capability.

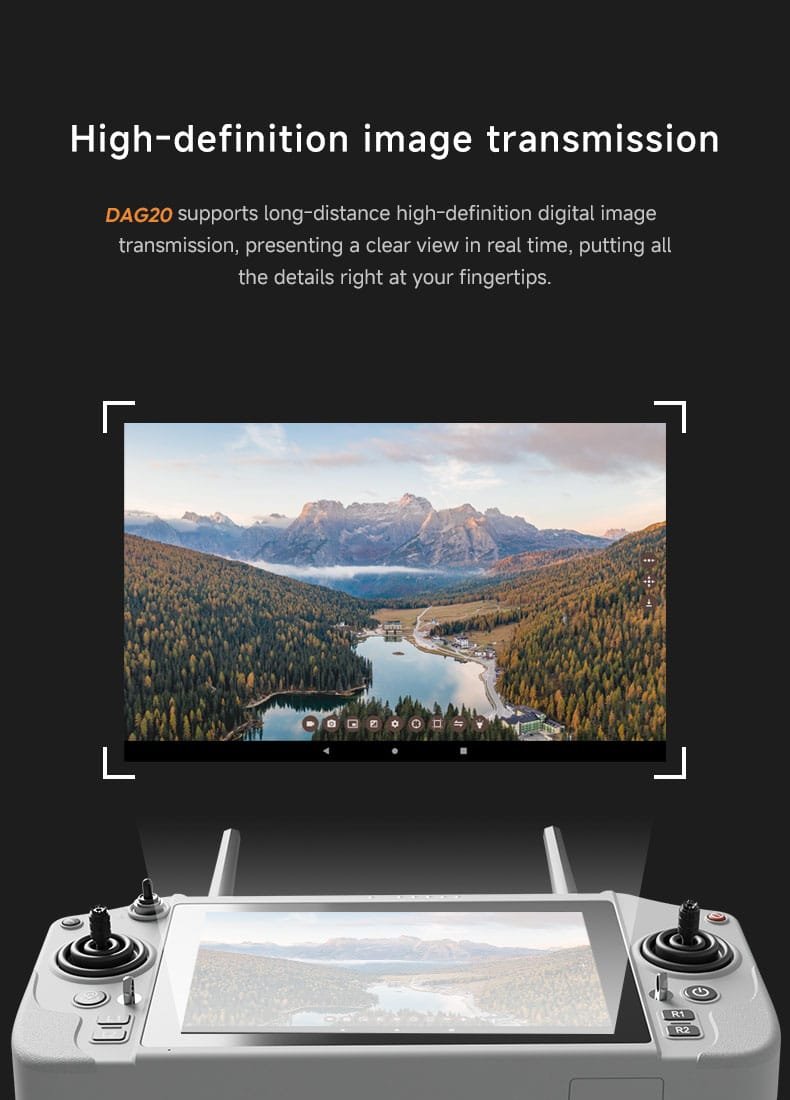

High-definition Image Transmission: The DAG20 supports long-distance high-definition digital image transmission, providing a clear view in real-time and allowing for precise control of the drone with all details visible.
Qualcomm Android Platform: Equipped with Qualcomm’s 6nm processor and Android 13 system, the DAG20 supports hardware decoding of H264/H265 and 4K video streams, and can smoothly run various ground station software to meet complex task requirements.

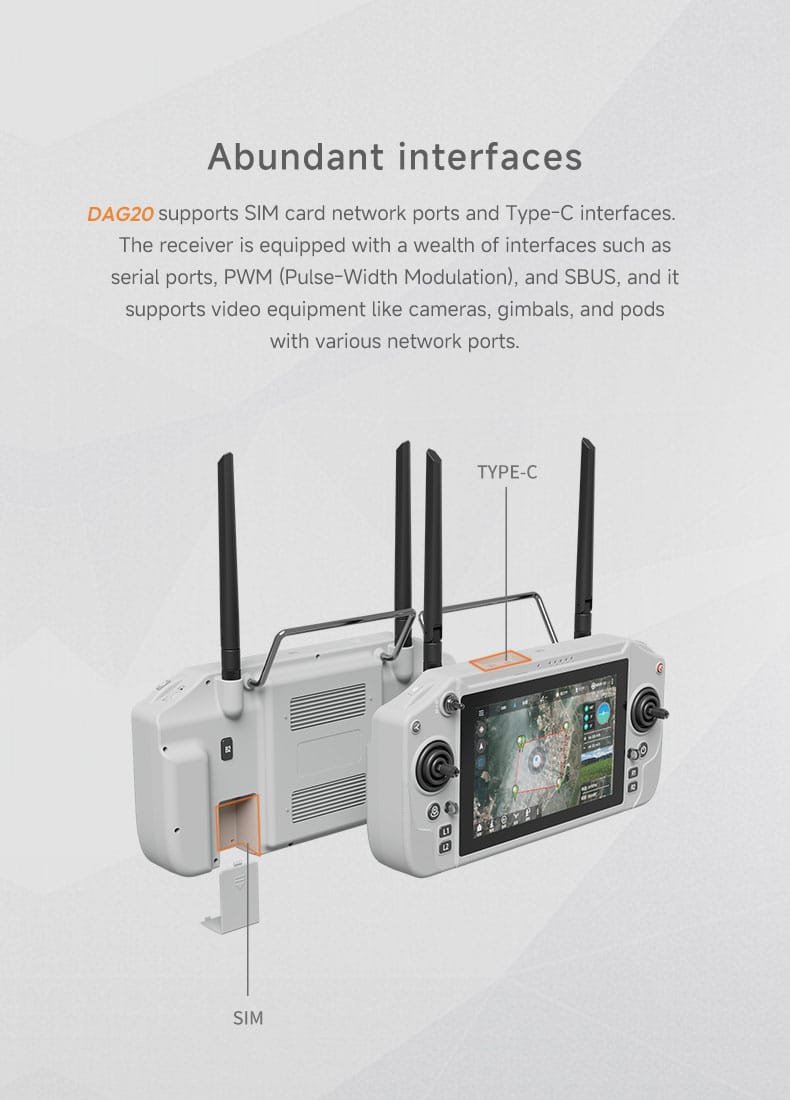

Abundant Interfaces: The DAG20 offers a variety of interfaces, including SIM card network ports, TYPE-C ports, serial ports, PWM, SBUS, and supports various video equipment like cameras and gimbals, adapting to different connection needs.
Endurance Time: Equipped with a large capacity battery (20000mAh), providing 6 to 8 hours of endurance, and supports 36W fast charging, reducing charging time and ensuring long operating durations.

3. Detailed Technical Parameters

Parameter	Specification
Display	7-inch industrial touch screen
Resolution	1920×1200
Processor	Qualcomm 6nm processor
Computer Type	Android 13
Size	277(L)×138(W)×96(H)mm
Weight	1.2kg
Battery	20000mAh
Endurance	6–8 hours
Operating Memory	8GB
Operating Frequency Band	2.4GHz/5.8GHz
Channels Number	16
Dynamic FM	Automatic frequency hopping
RF Power	23dBm@CE/FCC
Remote Control Distance	5–30 km (ground-to-air, visual)
Charging Interface	TYPE-C
External Interface	USB port, SIM card slot, TYPE-C
Operating Temperature	-10°C to +55°C

4. Application Scenarios

Professional Drone Operations: The DAG20 is an ideal choice for professional drone operations, providing stable communication and a high-quality display, suitable for aerial photography, surveying, monitoring, and more.
Search and Rescue: In search and rescue missions, the DAG20 provides continuous image transmission and control, ensuring that operators can respond quickly and efficiently in dynamic environments.
Inspection and Surveillance: The DAG20 is perfect for infrastructure inspections (e.g., power lines, bridges) and surveillance tasks. Its long-distance image transmission function ensures effective real-time monitoring.
Agricultural Monitoring: The DAG20 plays a significant role in agricultural monitoring, offering clear displays of farmland conditions, assisting in precision agriculture, and improving crop monitoring and analysis efficiency.
