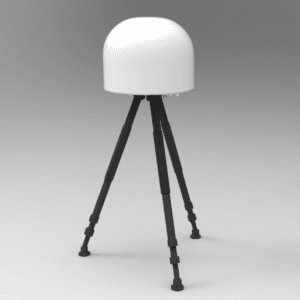

Full-band Passive Detection Equipment

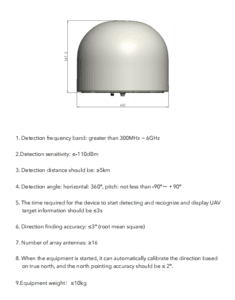

Performance parameters：

1. Detection frequency band: greater than 300MHz ~ 6GHz 2.Detection sensitivity: ≤-110dBm 3. Detection distance should be: ≥5km 4. Detection angle: horizontal: 360°, pitch: not less than -90°～﹢90° 5. The time required for the device to start detecting and recognize and display UAV target information should be ≤3s 6. Direction finding accuracy: ≤3° (root mean square) 7. Number of array antennas: ≥16 8. When the equipment is started, it can automatically calibrate the direction based on true north, and the north pointing accuracy should be ≤ 2°. 9.Equipment weight：≤10kg

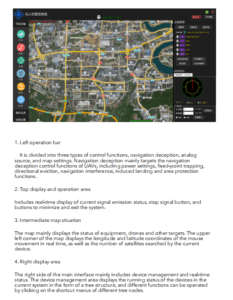

"Operation interface：

1. Left operation bar It is divided into three types of control functions, navigation deception, analog source, and map settings. Navigation deception mainly targets the navigation deception control functions of UAVs, including power settings, fixed-point trapping, directional eviction, navigation interference, induced landing and area protection functions. 2. Top display and operation area ：Includes real-time display of current signal emission status, stop signal button, and buttons to minimize and exit the system. 3. Intermediate map situation The map mainly displays the status of equipment, drones and other targets. The upper left corner of the map displays the longitude and latitude coordinates of the mouse movement in real time, as well as the number of satellites searched by the current device. 4. Right display area The right side of the main interface mainly includes device management and real-time status. The device management area displays the running status of the devices in the current system in the form of a tree structure, and different functions can be operated by clicking on the shortcut menus of different tree nodes"
