Full-range Navigation Deception and Capture Equipment

Performance parameters：

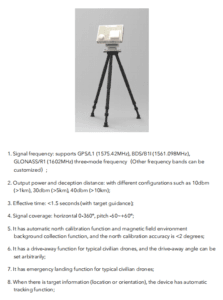

1. Signal frequency: supports GPS/L1 (1575.42MHz), BDS/B1I (1561.098MHz), GLONASS/R1 (1602MHz) three-mode frequency（Other frequency bands can be customized）; 2. Output power and deception distance: with different configurations such as 10dbm (>1km), 30dbm (>5km), 40dbm (>10km); 3. Effective time: <1.5 seconds (with target guidance); 4. Signal coverage: horizontal 0-360°, pitch -60~+60°; 5. It has automatic north calibration function and magnetic field environment background collection function, and the north calibration accuracy is <2 degrees; 6. It has a drive-away function for typical civilian drones, and the drive-away angle can be set arbitrarily; 7. It has emergency landing function for typical civilian drones; 8. When there is target information (location or orientation), the device has automatic tracking function;
